Ny Bitumensprøyte TICAB Mini Crack Sealing Machine BPM-100 [ Copy ]

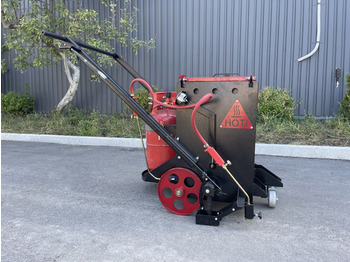

The BPM-100 TICAB Mini Crack Sealing Machine is a portable unit widely used in the field of road construction to fill and repair cracks, joints, splits, delaminations in asphalt pavement. The manual caster resembles a cart. The unit consists of a welded metal frame equipped with wheels and a hopper mounted on it Bitumen briquettes are put into the hopper, which are heated with a burner and a gas cylinder to a temperature of 180 - 200 °. There is a thermometer on the caster body, which allows to control the temperature of bitumen in the hopper and avoid overheating of the material.

Inside the hopper there is a so-called agitator designed for mixing the material, as well as a tap - dispenser, with which the heated mixture is fed to the outside.

Characteristics:

-Easy transportation to the construction site;

-Maneuverability and mobility;

-Performance of quality patching;

-Can be operated by a single person with no special skills;;

-Wide range of applications: repairing cracks, filling joints, joining asphalt edges,

filling gaps on bridges, viaducts or airfields;

-The possibility of heating the bituminous mixture to a temperature of +240 ° C.

-Presence of turning wheels;

-Indicator that displays the temperature of the mass and the gas pressure regulator;

-Even material heating and the possibility of regulating the temperature of the bituminous material;

An ability to mix the working material in the hopper of the manual joint filler;

-Mechanical feed control valve;

- Number of blocks-2

-Volume - 70L

- Reducer;

- Heating - propane gas.

(1-year warranty)

we have in stock
