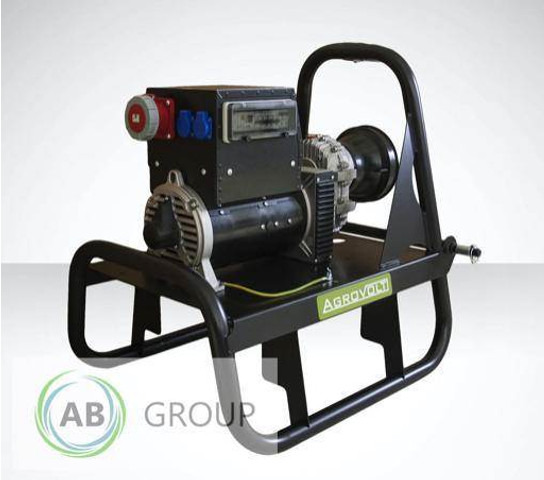

Elektrisk generator Agrovolt Stromaggregate AV27R / Generator AV27R

Technical Parameters:- Voltage regulator: standard CVR- Voltage stabilisation: +/- 1%- Frequency: 50Hz- Three-phase voltage: 400V  Power factor 0,8 cos ⱷ  Maximum power: 29,7 kVa  Rated power: 27 kVa  Rated current: 39,1 A- Single phase voltage: 230V  Power factor: 1 cos ⱷ  Maximum power: 11,9 kVa  Rated power: 10,8 kVa  Rated current 47 A- Weight: 142 kg- Lenght: 950mm- Widht: 800mm- Height: 933mm- Alternator: synchronous- Ingress Protection: IP23- Revolutions: 3000 rpm- Gearbox: 1:7- Oil type: SAE 80W-90- Oil quantity: 0,9lTractor:- PTO speed: 430 obr./min.- PTO power: 26/36 kW/HP- PTO shaft dimensioning: 762 Nm Standart Equipment:- 1 socket 63A 400V- Undervoltage release- 2 socket 16A 230V Schuko- Automatic fuses 400V- Automatic fuses 230V- Residual current protection- Timer V, Hz, A, kVa- Set securing the connection with the tractor- Gearbox filled with oilOther Models: 18 kVa 22 kVA 27 kVA 65 kVA 80 kVA*EXPORT: ONLY THE NET AMOUNT TO BE PAID (with valid VAT EU number), TRANSPORT WORLDWIDE POSSIBLE at good conditions

More information

Field of application: Construction

Technical condition: very good

Visual appearance: very good

Please contact Maciej Borkowski (english, polski) (+48 601930450, office@ab-group.com.pl) or Joanna Jastrzębska (polski) (+48 606320720, office@ab-group.com.pl) for more information
