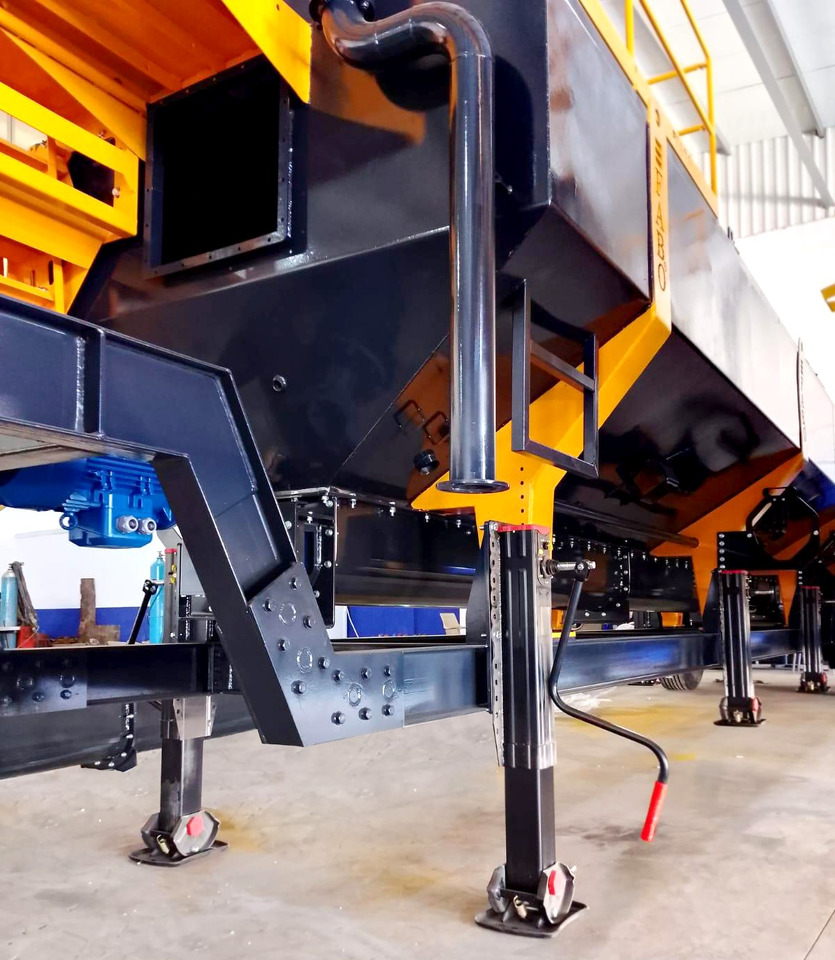

FABO Cement silo
Constmach Zement Silo mit 3000 Tonnen Kapazität
Constmach 3000 Ton Capacity Cement Silo
Constmach 2000 Ton Capacity Cement Silo
Constmach 1000 Ton Capacity Cement Silo
Constmach 500 Ton Capacity Cement Silo
Constmach 300 Ton Capacity Cement Silo
Constmach 200 Ton Capacity Cement Silo
Constmach 100 Ton Capacity Cement Silo
Constmach 75 Ton Capacity Cement Silo
Constmach 50 Ton Capacity Cement Silo
Constmach Mobile Cement Silo (Horizontal Cement Silo)
Promax 100 tons cement silo delivery from stock
Promax PROMAX cement silo 500 tons
Publisert: 2år. 3mån.
Denne annonsen var fjernet fra vår database. Du kan bestille: POLYGONMACH 3000 TONS CAPACITY CEMENT SILO
Legg inn "ønskes kjøpt"1. SILO CAPACITY: 3.000 TONNES
2. SILO HEIGHT: 35 000 mm
3. SİLO DIAMETER: Ø 12.400 mm
4. QUANTITY OF SILO LEGS: 7
5. SILO OUTPUT DIAMETER: Ø 400 mm
7. SILO WEIGHT: 176.000 kg
8. MATERIAL OF SILO LEGS: Ø273 x 20 mm STEEL PIPE
9. SUPPORT OF SILO LEGS: NPL 80 mm
10. SHEET METALS OF SILO LEG: 20-25 mm
11. CONICAL PART SUPPORT MATERIAL: 160 mm STEEL C CHANNEL.
12. CONICAL PART MATERIAL: ST- 37, 10 mm SHEET METAL
13. SILO BODY MATERIAL: ST -37, 10 - 8 - 6 -5mm SHEET METAL
14. TOP COVER MATERIAL OF SILO: ST -37, 5 mm SHEET METAL.
15. INNER MAN HOLE IS INCLUDED.
16. OUTER MAN HOLE IS INCLUDED.
17. SILO ROOF INCLUDES PAREPETS.
18. MAINTENANCE PLATFORM IS INCLUDED.
19. CHARGING PIPE: 4’’ PIPE UP TO SILO LEG.
20. STRUCTURAL ANALYSIS IS MADE FOR THE SILOS AND MANUFACTURING PROCESS DEPENDS ON APPROVED PROJECTS.
Painting : 1 layer of anticorrosive paint, 2 layers of FINAL COAT EPOXY PAINT , total paint thickness : 140 microns
