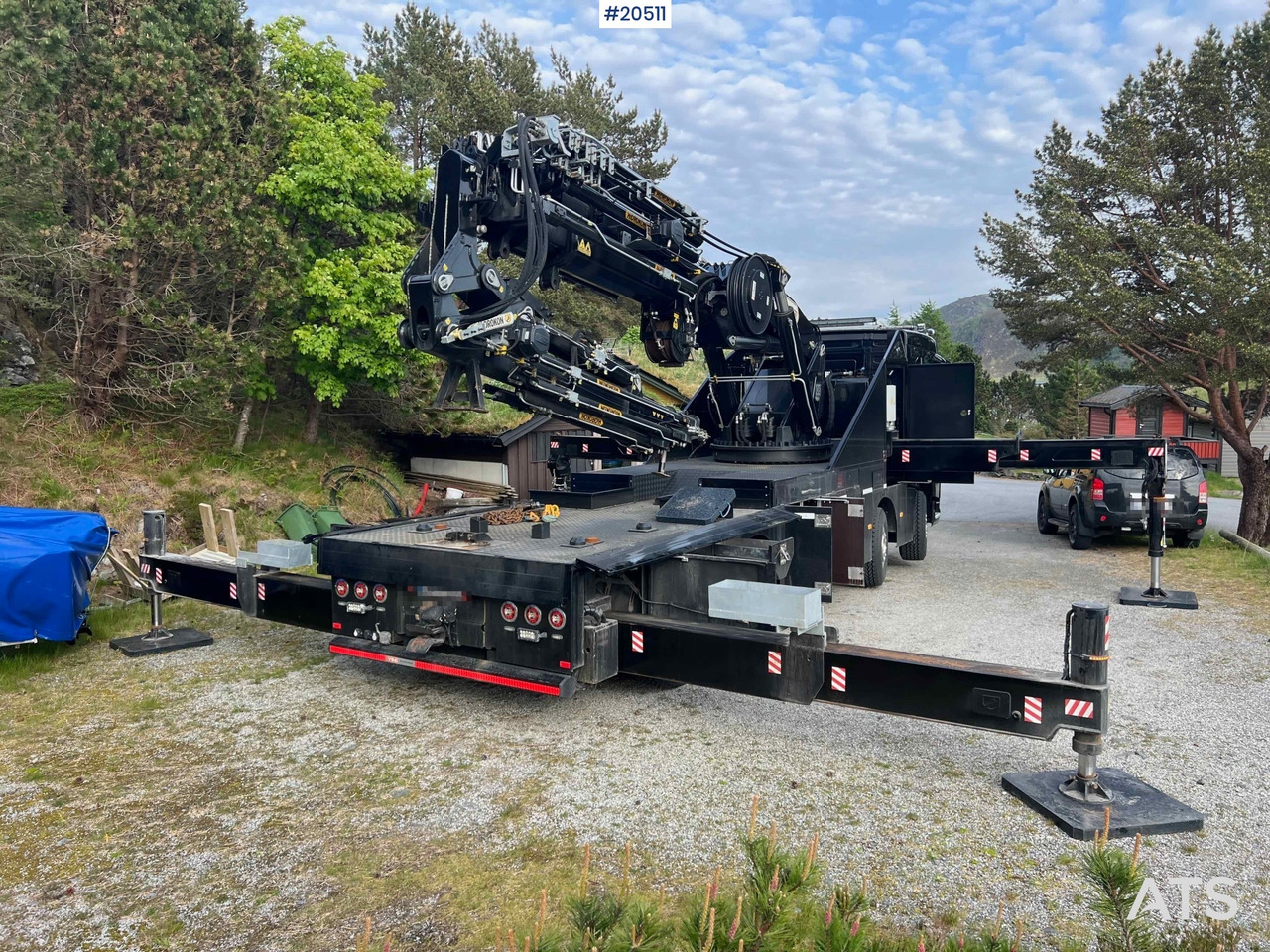

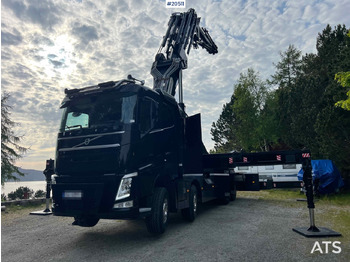

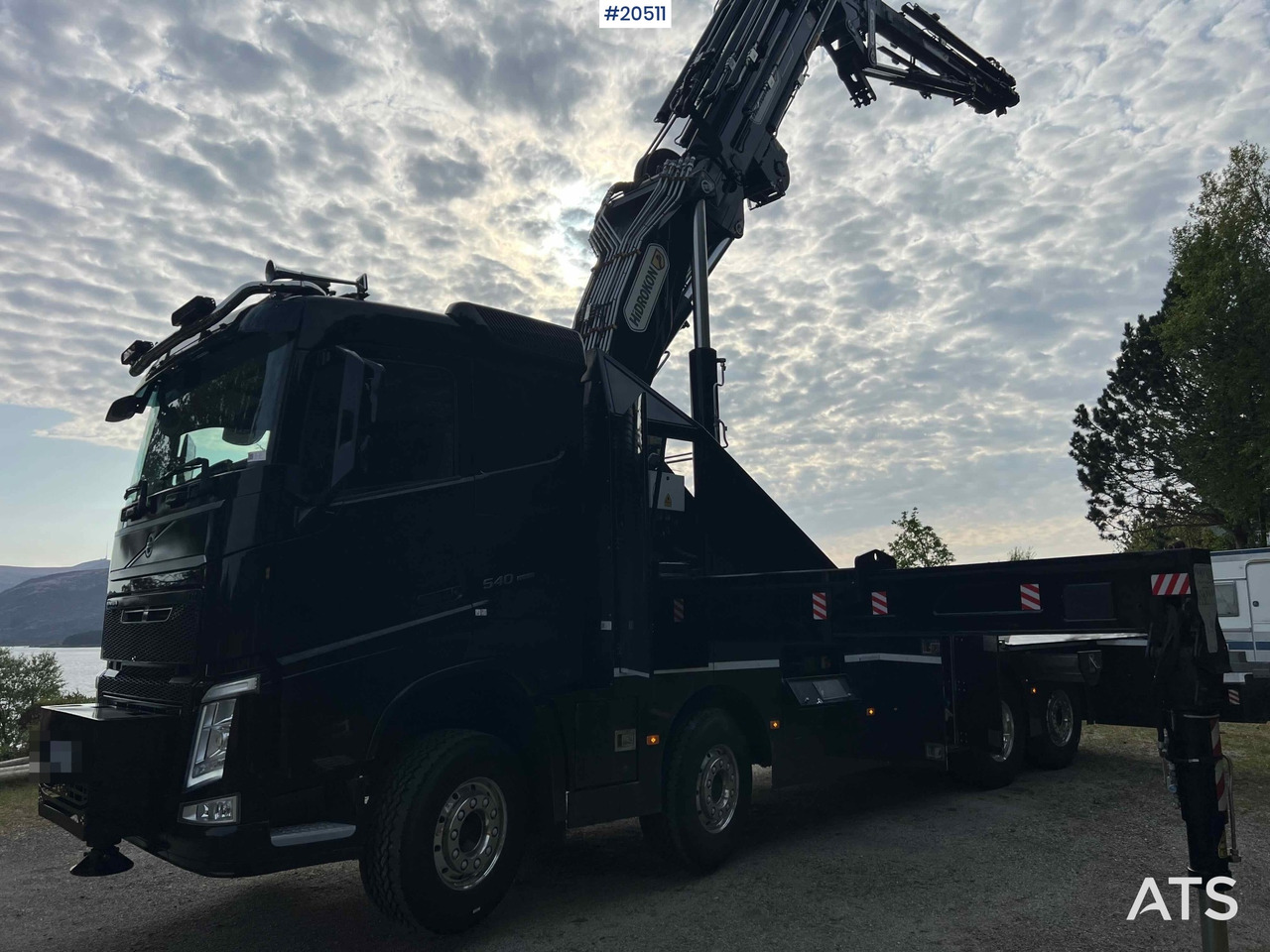

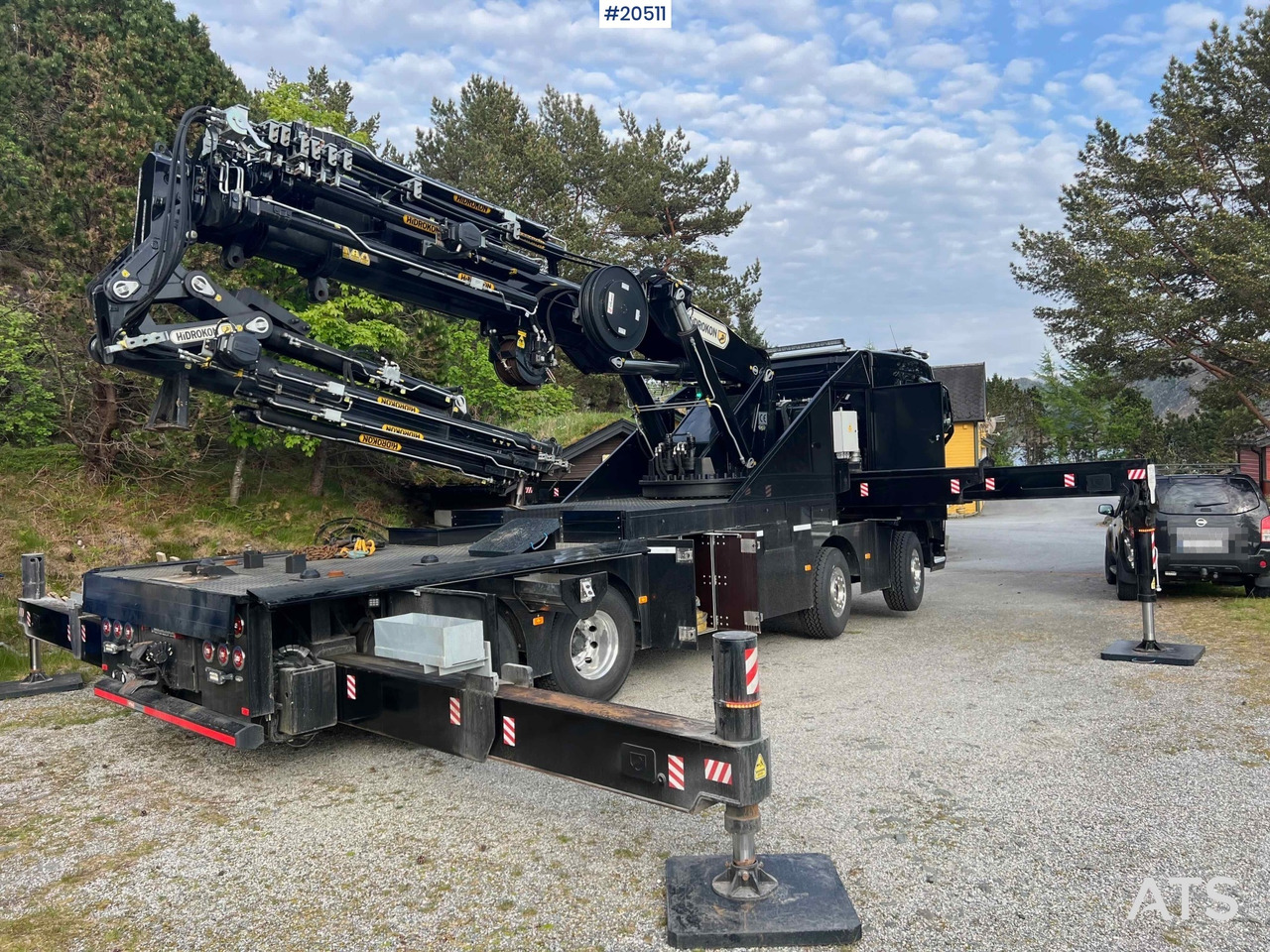

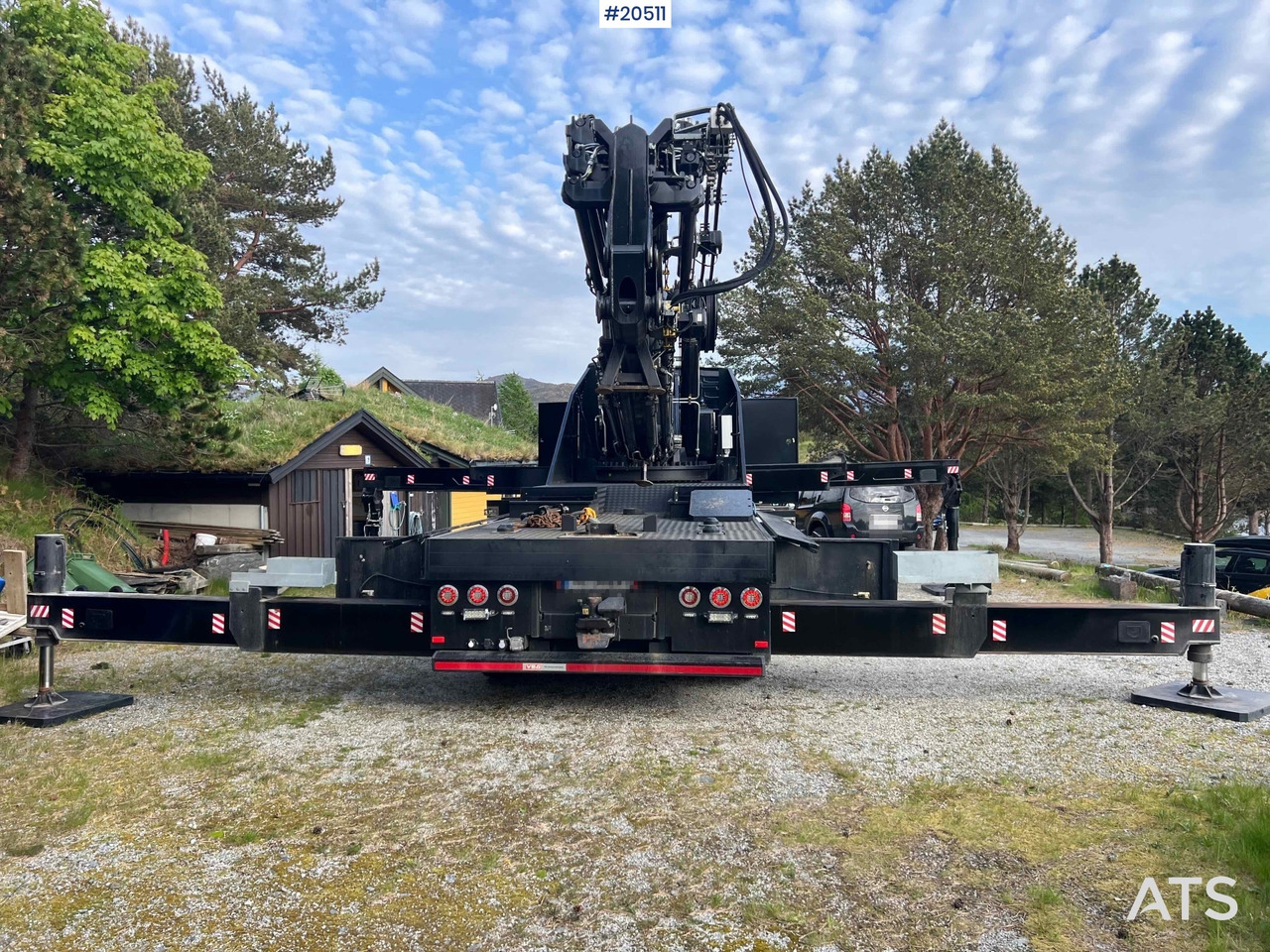

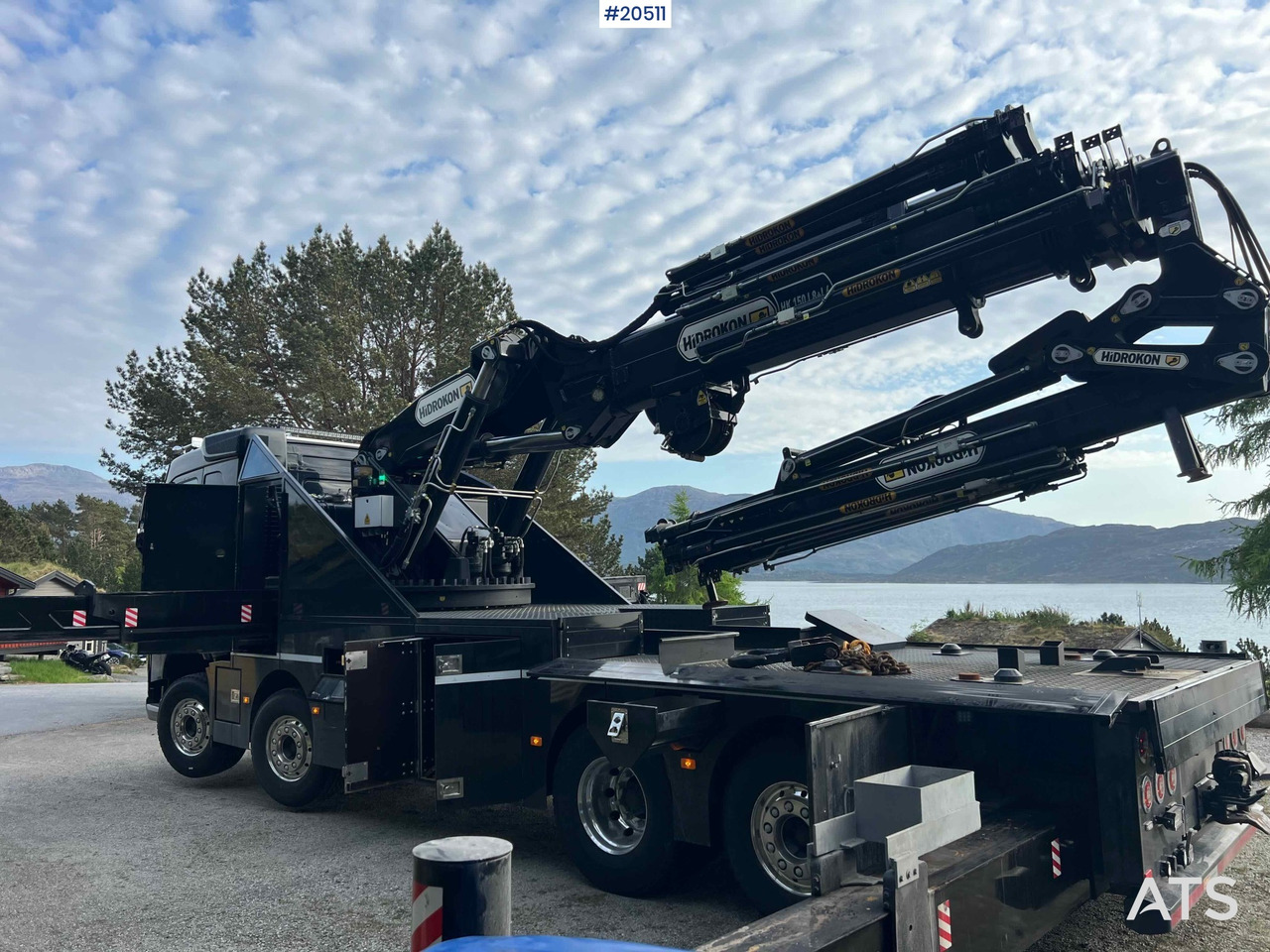

Leie Volvo FH 540 8x2 Kranbil m/ 2021 165 t/m HIDROKON kran m/ jibb og vinsj og enn masse utstyr! SE VIDEO
Publisert: 6mån. 14dg.
Publisert: 6mån. 14dg.
Publisert: 6mån. 14dg.
Norway, Sogn og Fjordane, 670137000 kg
Please provide reference number upon request: 20511
See ats.no/en/item/20511 for more images.
Specifications:
- 2021 model
- 5874 km (will increase slightly)
- Eu-approved until: 21.02.26
- Euro 6 engine
- 8x2
- 551 Hp

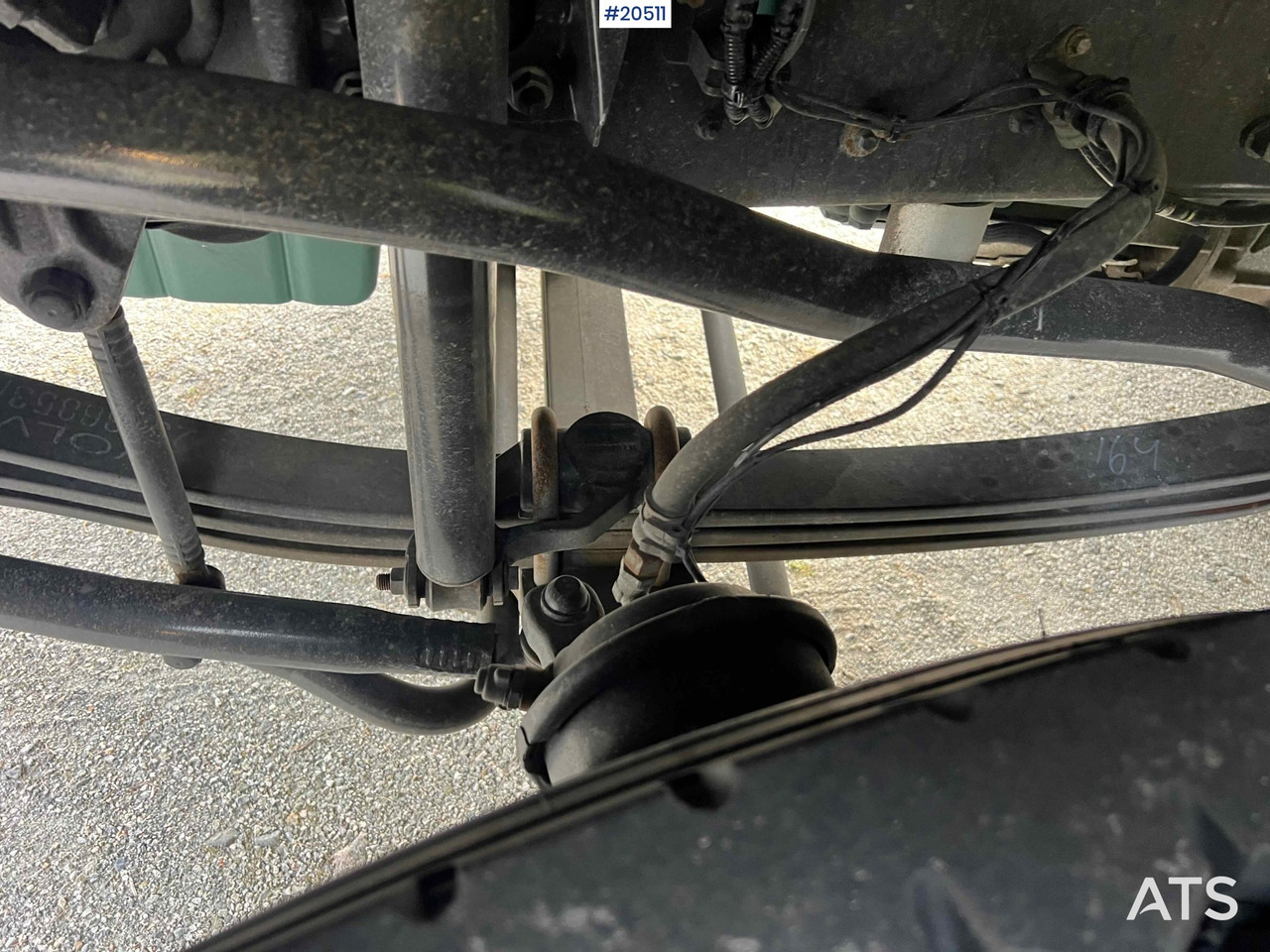

- Suspension on 1st and 2nd axle: Steel
- Suspension on 3rd and 4th axle: air
- 2 x 110 liter variable pumps
- 2 x manual extensions for main boom and 2 x for jib

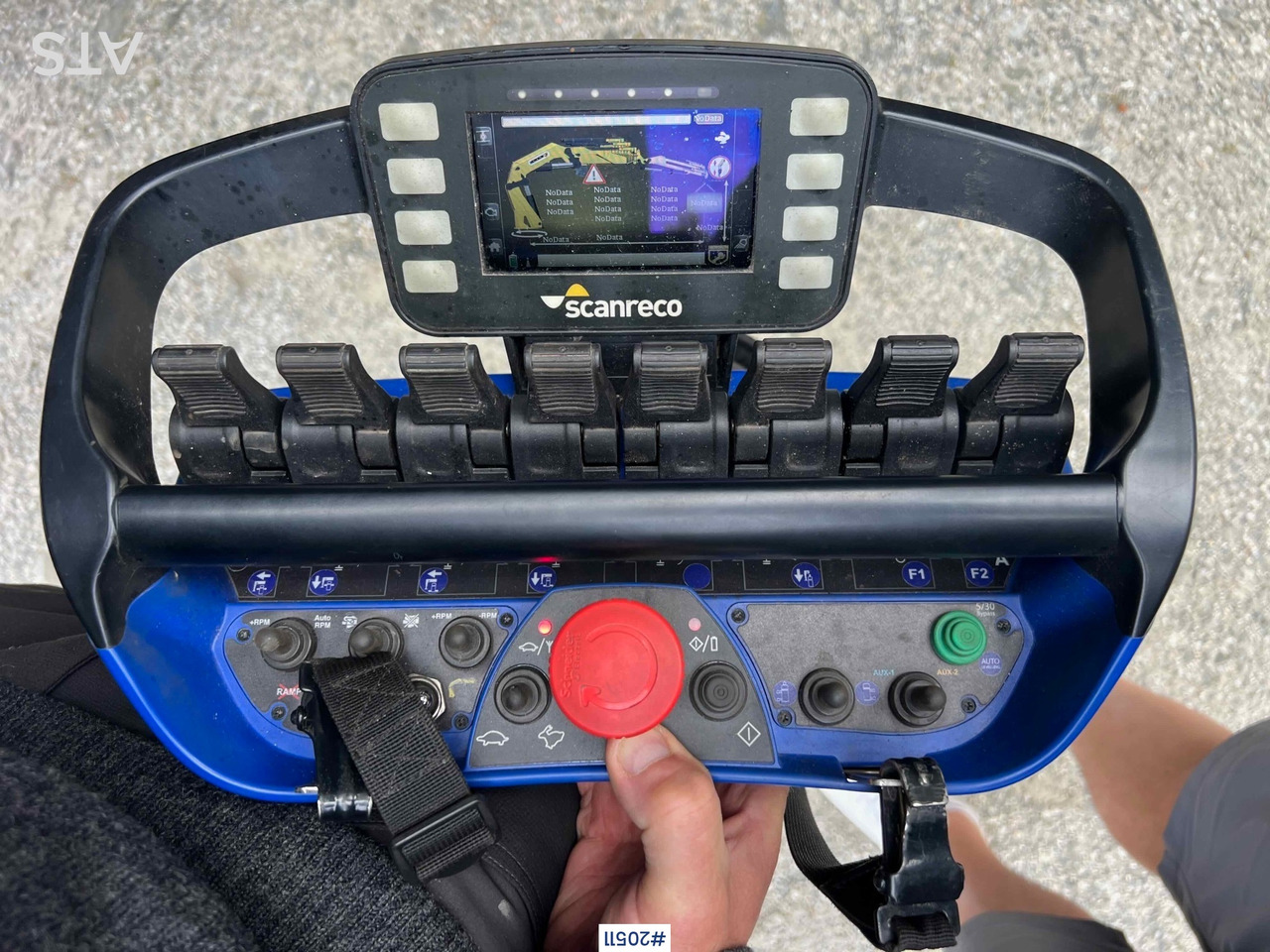

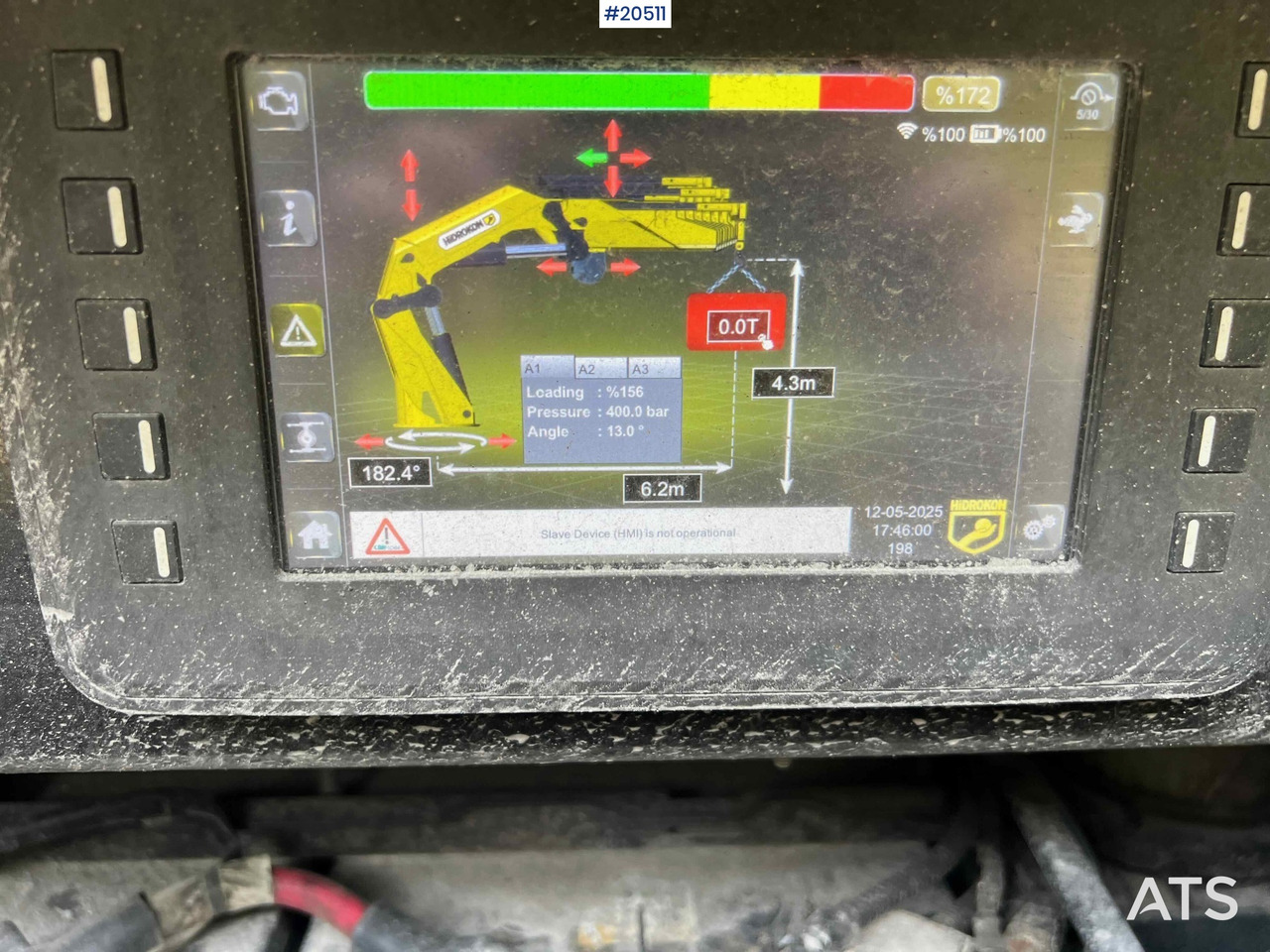

- Scanreco optical remote control (Top model)
- Weight cell main boom
- Extra function for main boom and jib
- Auto leveling (The car puts itself in a level position ready for lifting.)
- Virtual room (Possibility to limit all axes with a few keystrokes, no need to go to a workshop for this. Brilliant when working under high voltage etc.)
- SKF central lubrication of the crown and up to the first joint
- Extra function fully extended on jib
- Single winch hook (Jib / main boom)
- 2-part winch hook (Jib / main boom)
- 4-part winch hook (Main boom)
- Hook for jib
- Hook for main boom (Large hook)
- Emergency lowering unit (24 volts)
- Wire stop sensor and sleeve

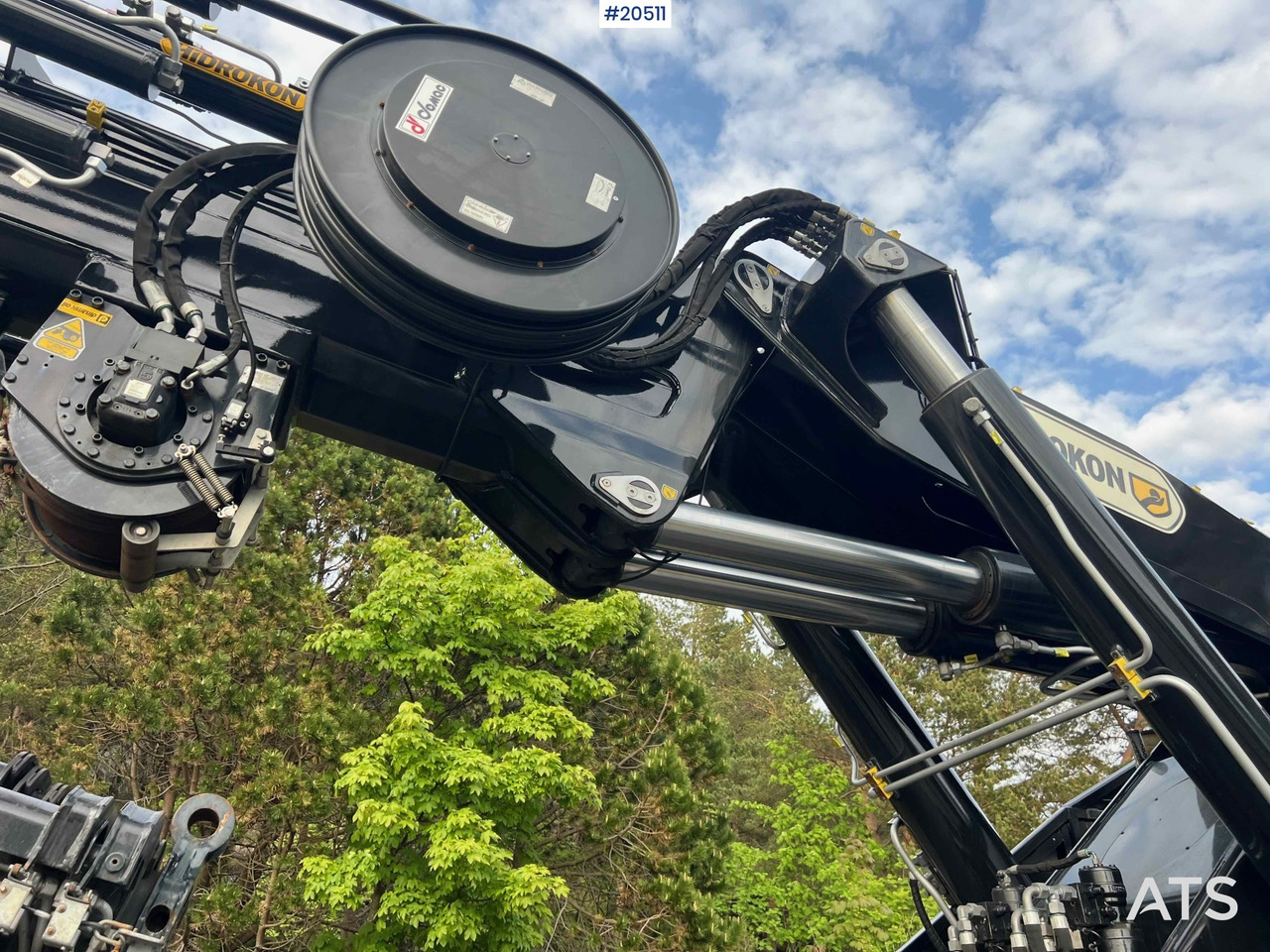

- 4 ton winch
- Diagnostic cable for online help (Remote help)
- Danfoss valve center
- 2 x 2 ton counterweight (Must only be used for cranes above the cabin otherwise the counterweights are not needed, and these can be removed as needed)

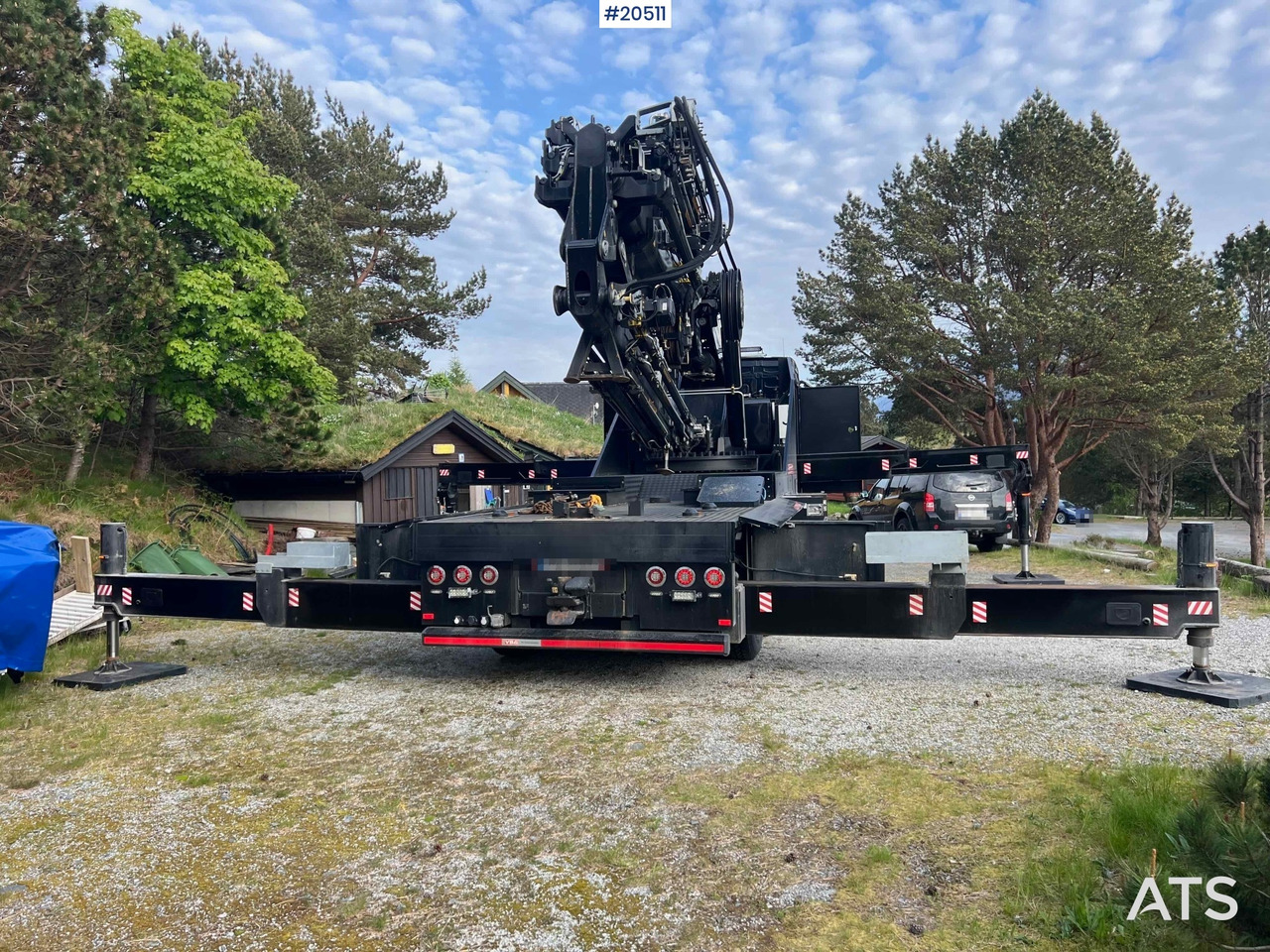

- Front support leg
Construction:
- 4 x work lights strategically placed inside each support leg cabinet.
- 50" LED bar work light rearward on the cabin
- Powerful LED lamps in the crane.
- VBG mount, with air servo control unit mounted in the rear cabinet left side.
- Bracket on the roof
- 2 pcs high beam LED bar on the roof forward (daylight!!).
- Orange work warning LED beam on the roof.
- EasyUp foldable ladder in the side with railing.
- Boxes for chain, chainsaw etc. Mounted on the rear support leg so that these are driven out together with the support leg and are at the same time packed away while driving.
- Charger for control in the cabin
- Plastic internal screens axle 3 and 4.
- 3 edge pull-out cabinet between axle 3 and 4
- On the left side between axle 2 and 3 there is a large cabinet with 500 W fan heater installed to hang clothes to dry etc.
- Plane / bottom at the rear closed with alloxed aluminum floor plates that are cut to fit the car perfectly, with rounded edges for a very professional send.
- CNC manufactured plates up the rear edge of the cabin.
- Fully painted sides, cabin and stern.
- Resting cradle for crane for driving without jib.
- 5 support leg plates. 4 pcs 80x80x6 cm. placed in dedicated cradles at the rear on the "level"
- Right side large cabinet 1.2 x 1 meter
- Powerful LED back / work lights at the rear.
- Rear part of the car rebuilt with CNC manufactured plates, and beautiful LED taillights have been installed in several stages.
- Hatches strategically placed for access to relevant devices under the bodywork.

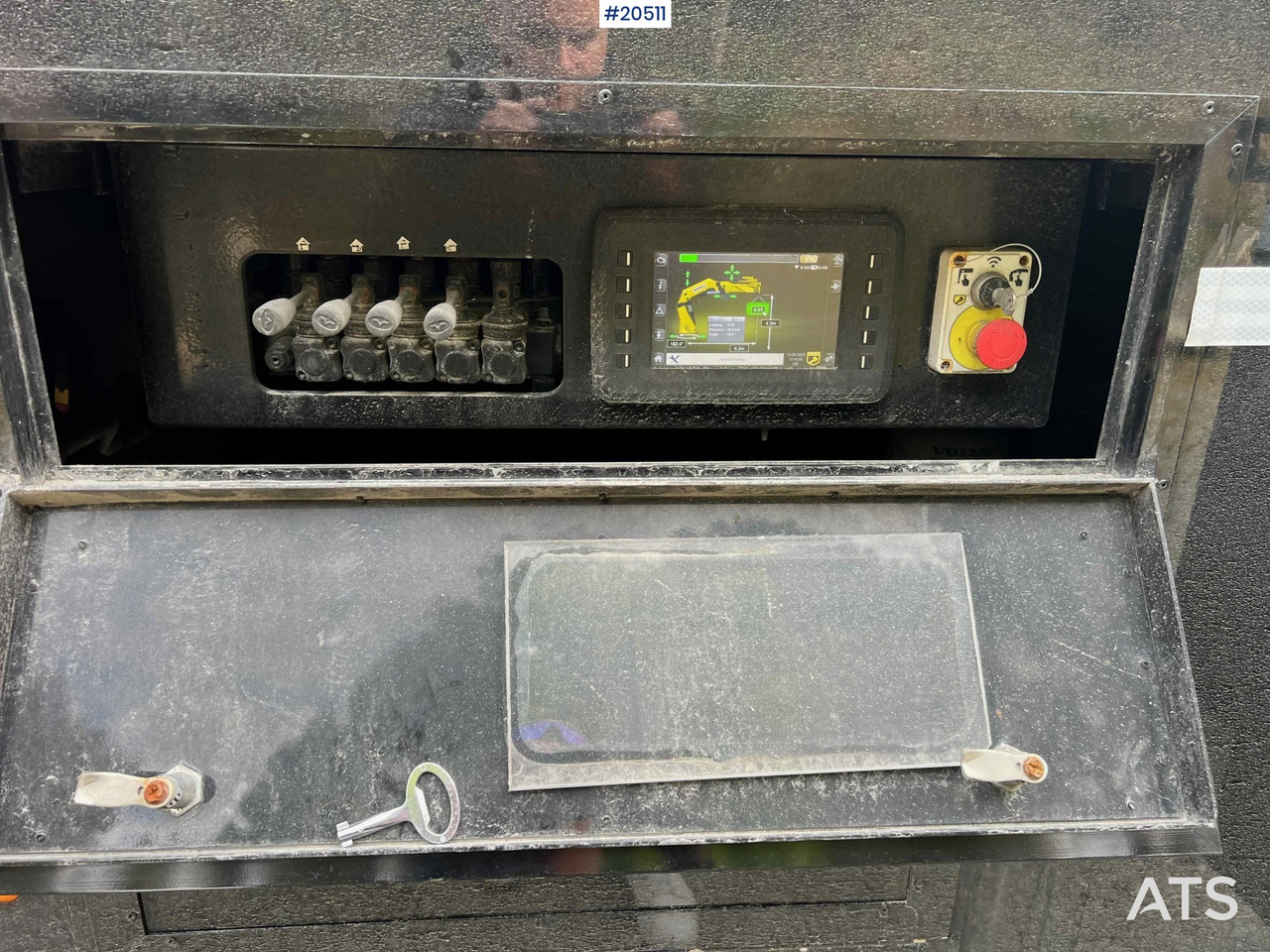

- Precisely cut out fields in the side coverage for access to the screen, manual controls, emergency lowering functions etc.
- Marker lights along the side mounted so that they flash together with the turn signals / direction indicators
- Cradle to hold the jib when not in use.
- Hydraulic extra function dismantled main boom and jib, but mounted if desired.
- Kettle in cabin
- Microwave oven in cabin
- Light
- Air conditioning/ac
- Ready for delivery
Description:

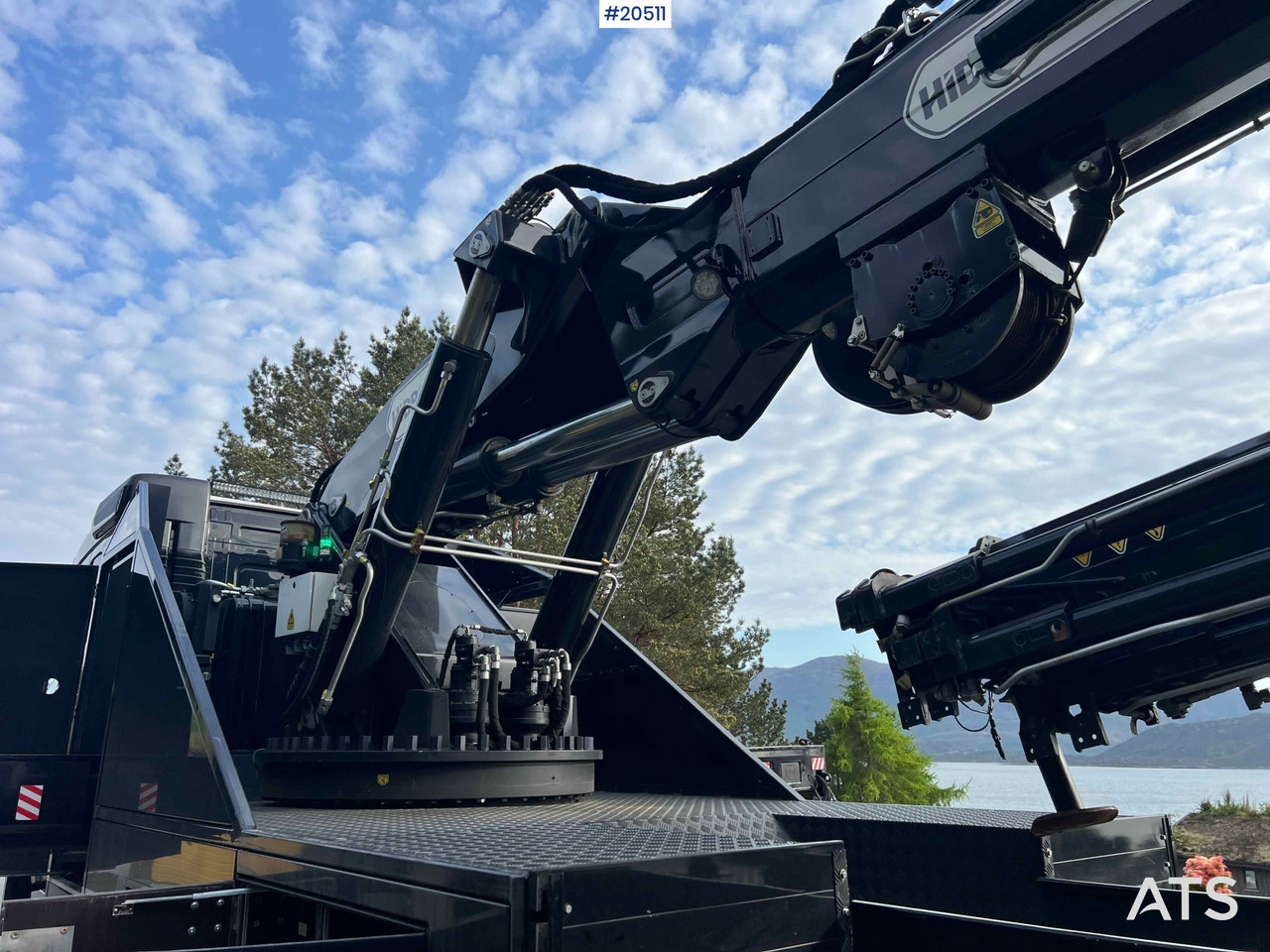

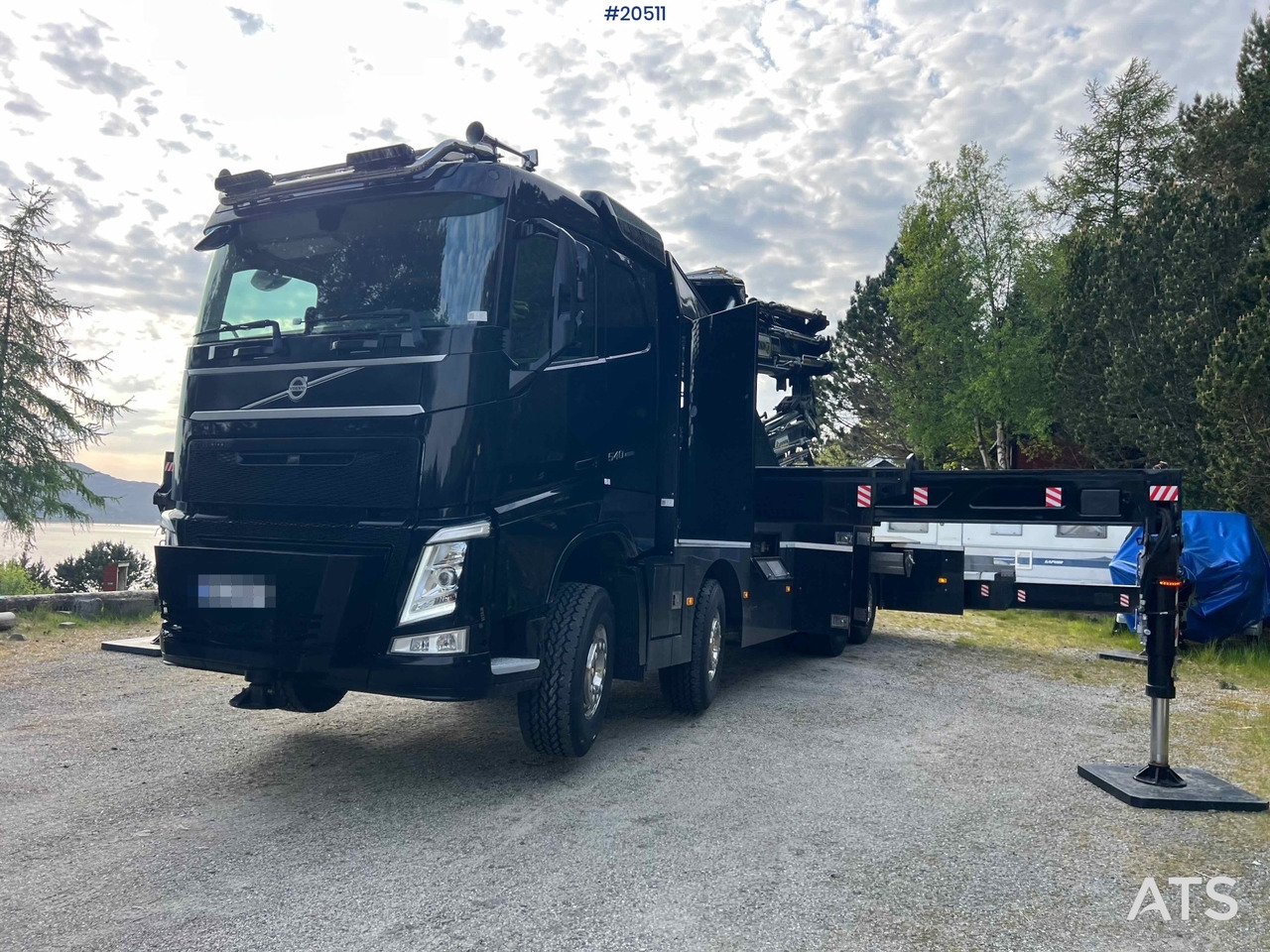

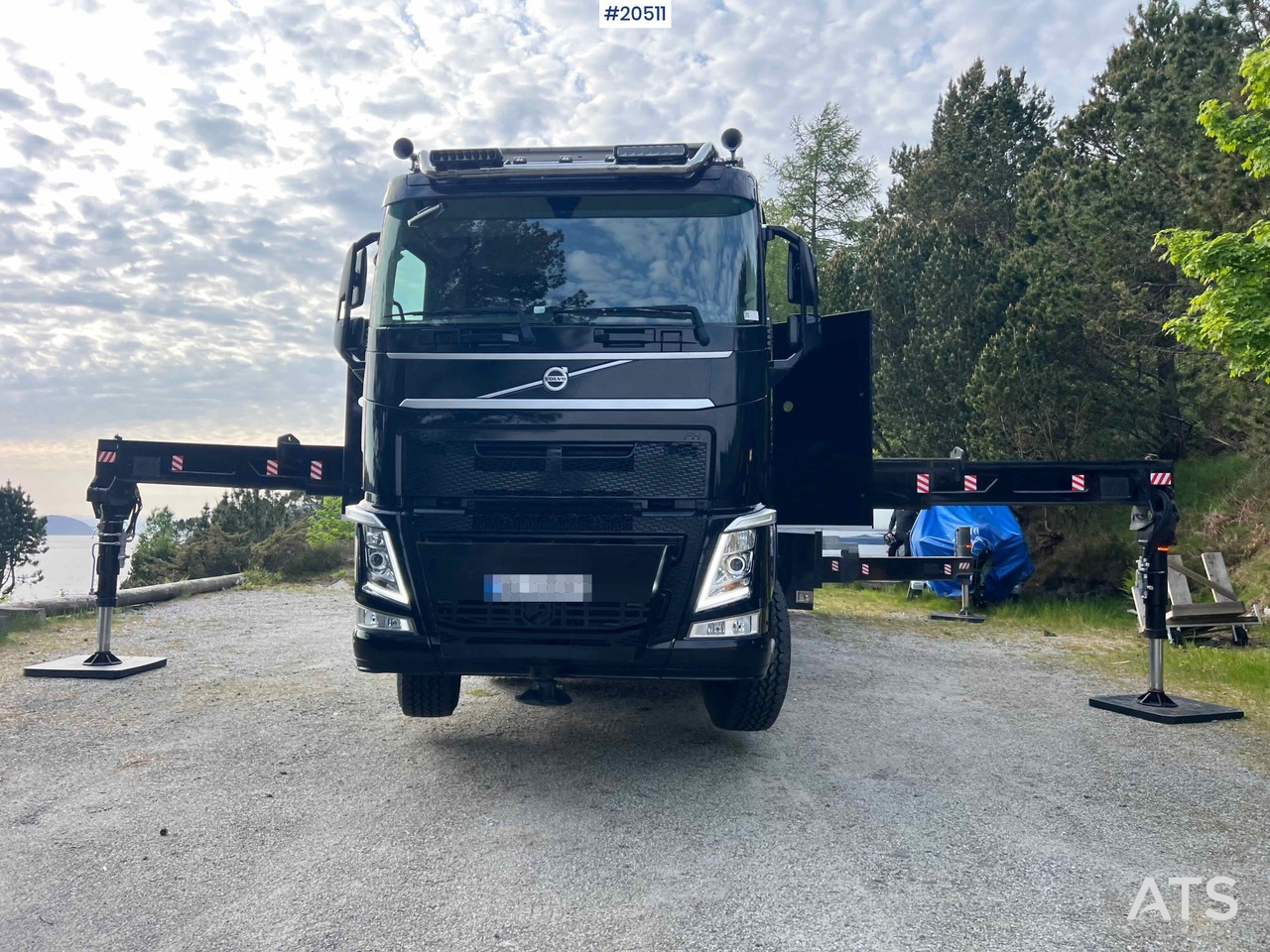

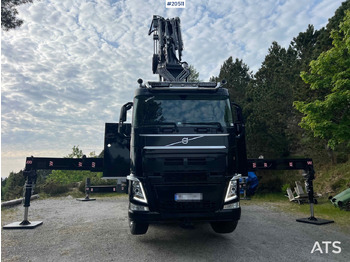

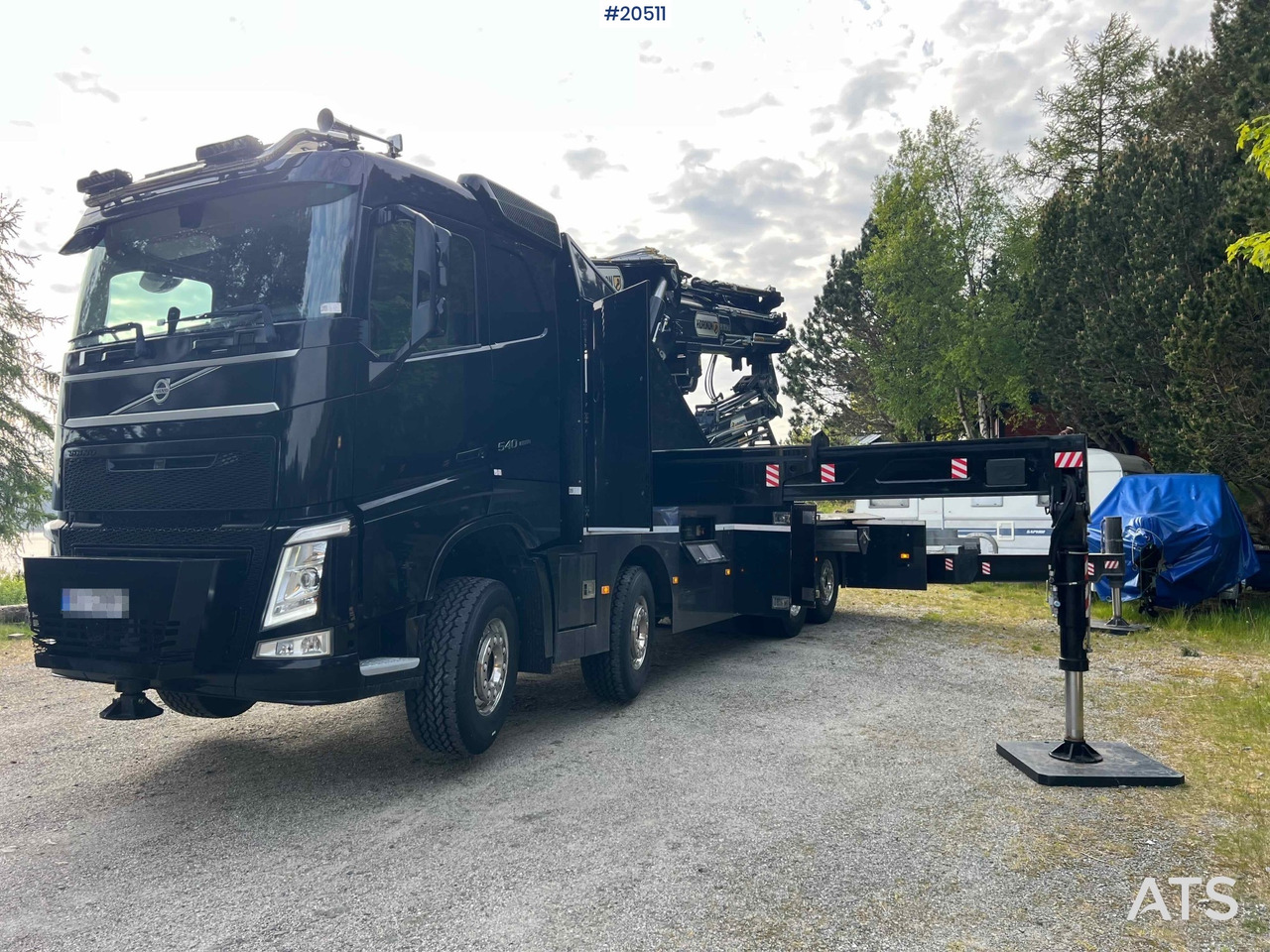

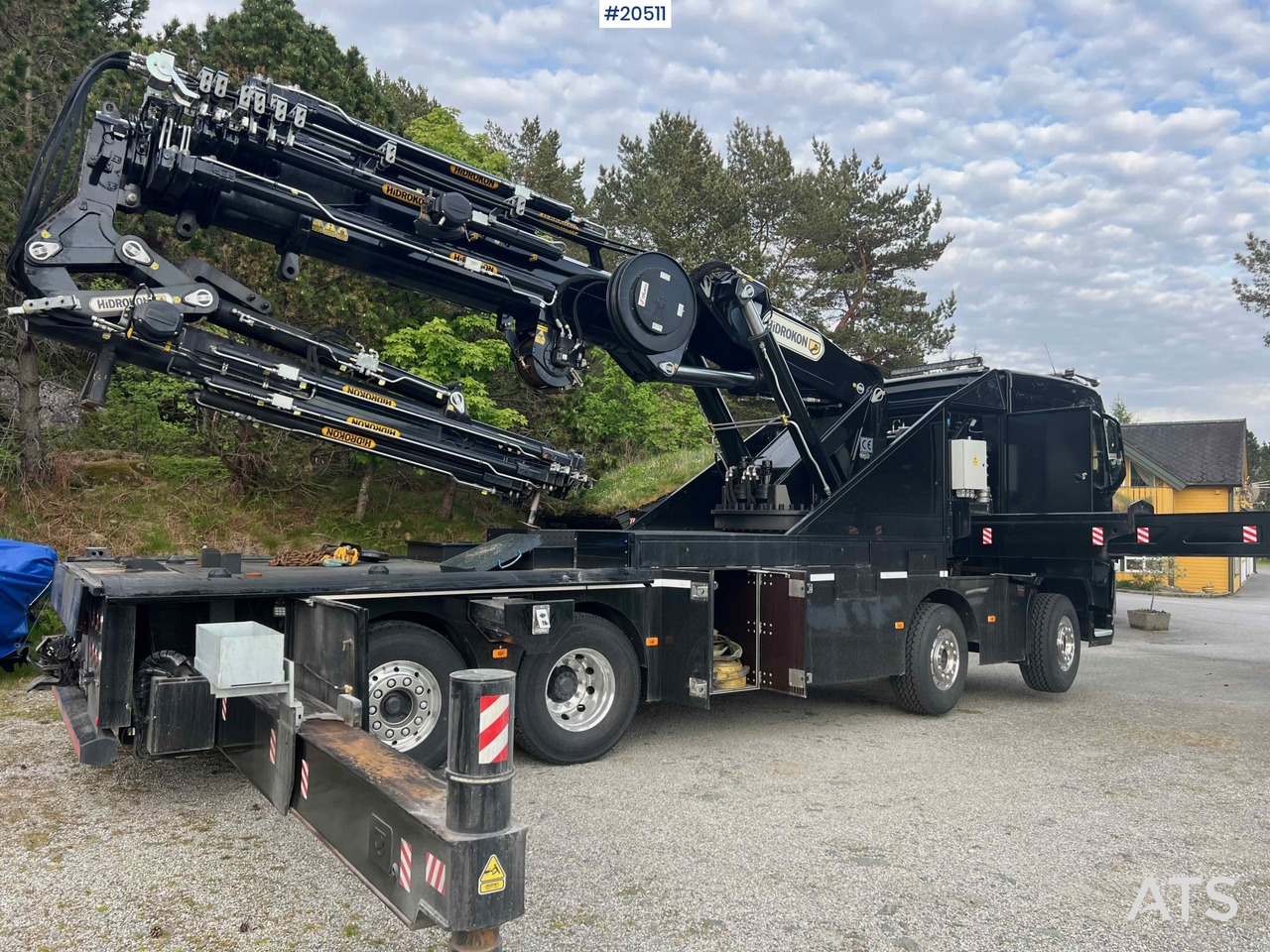

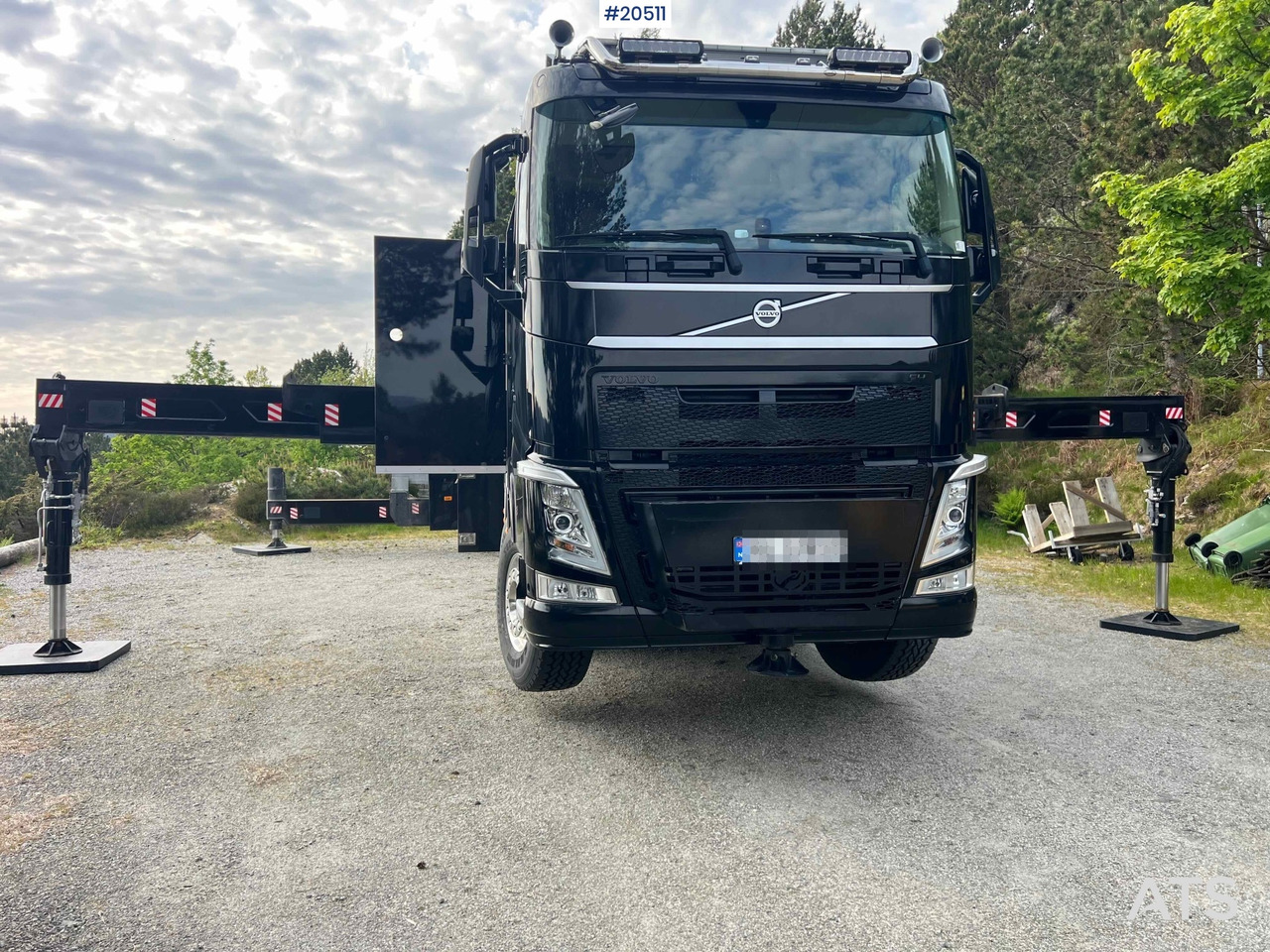

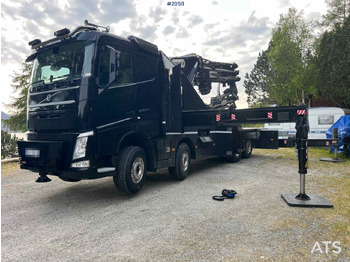

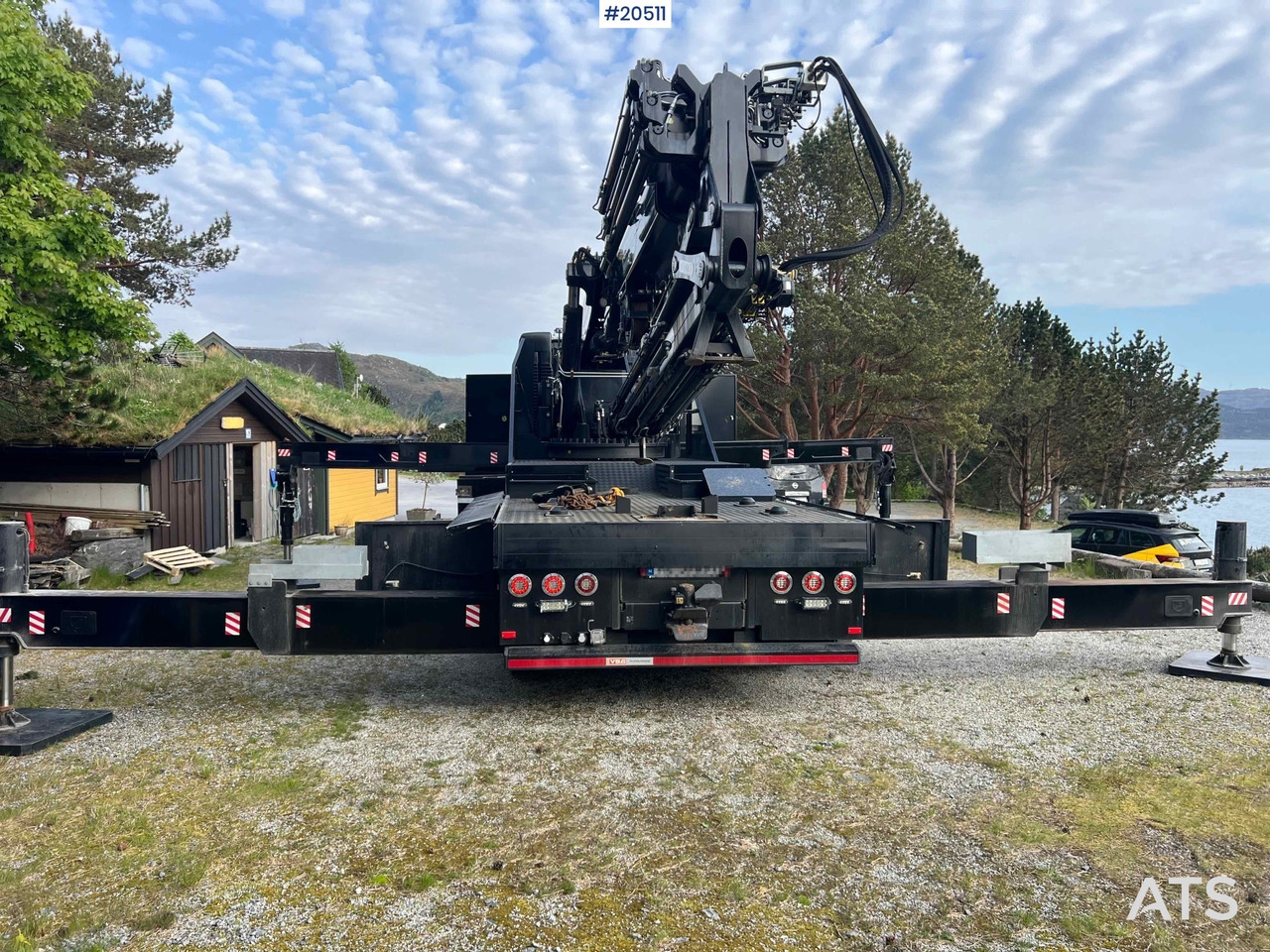

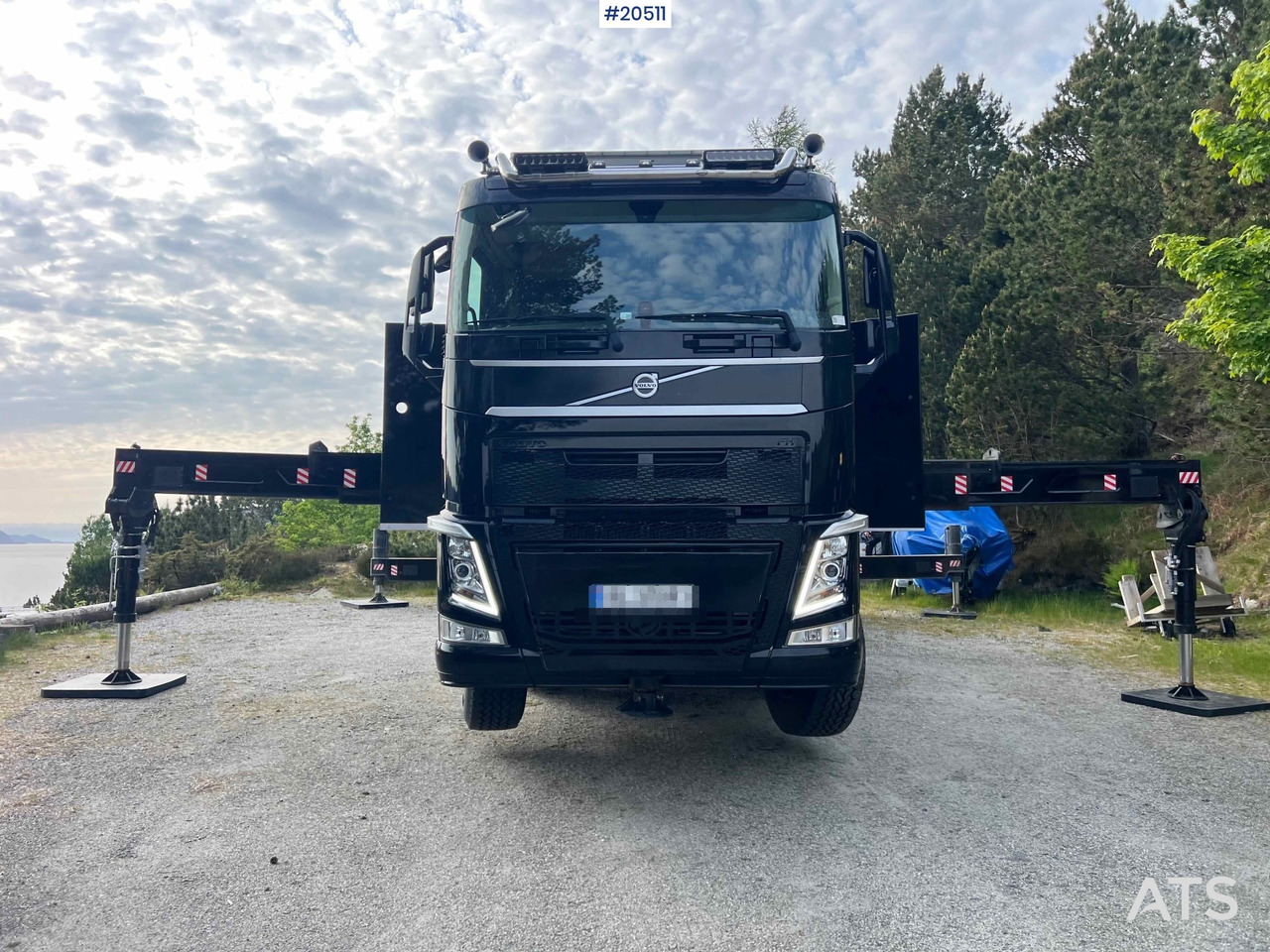

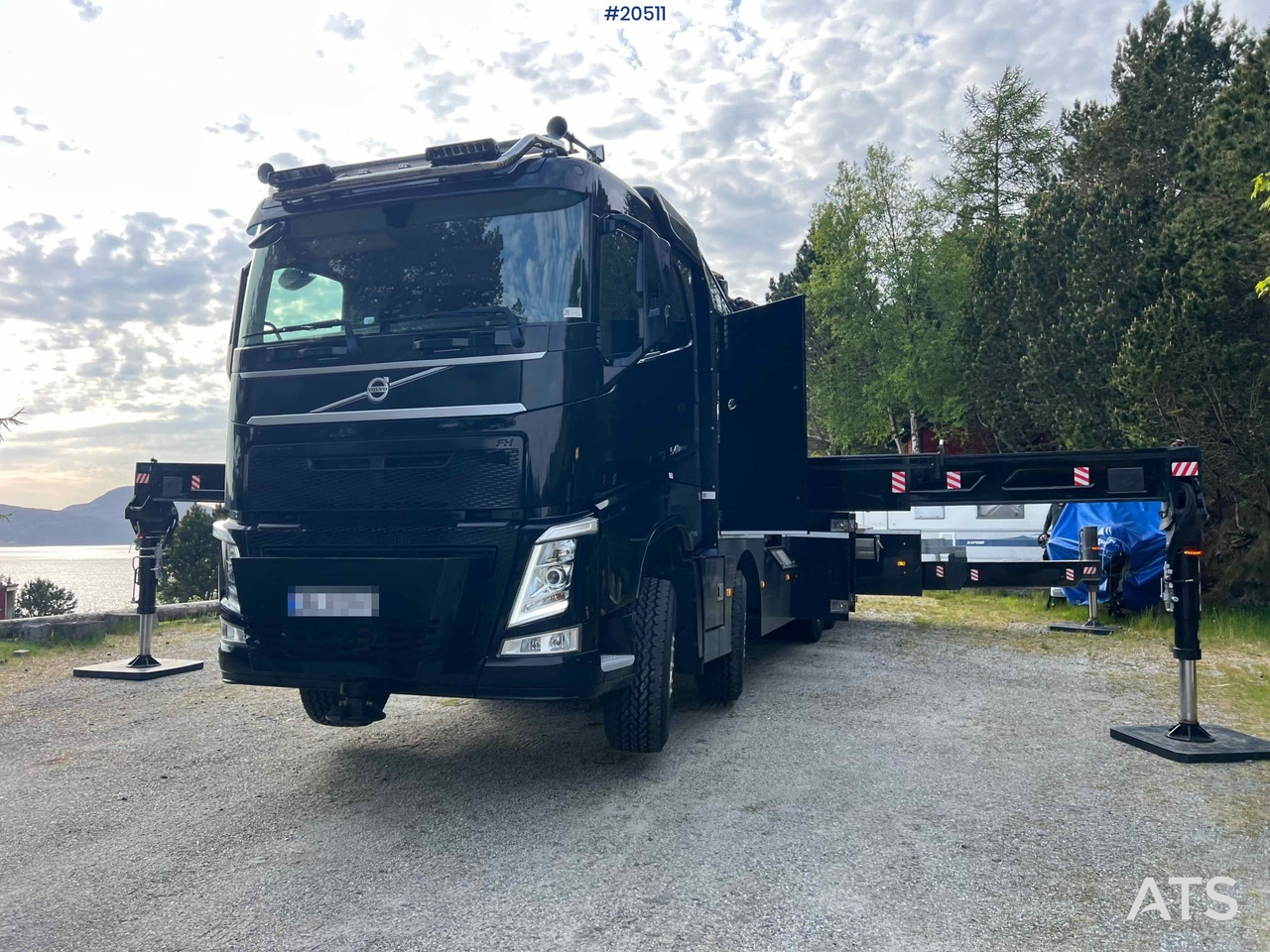

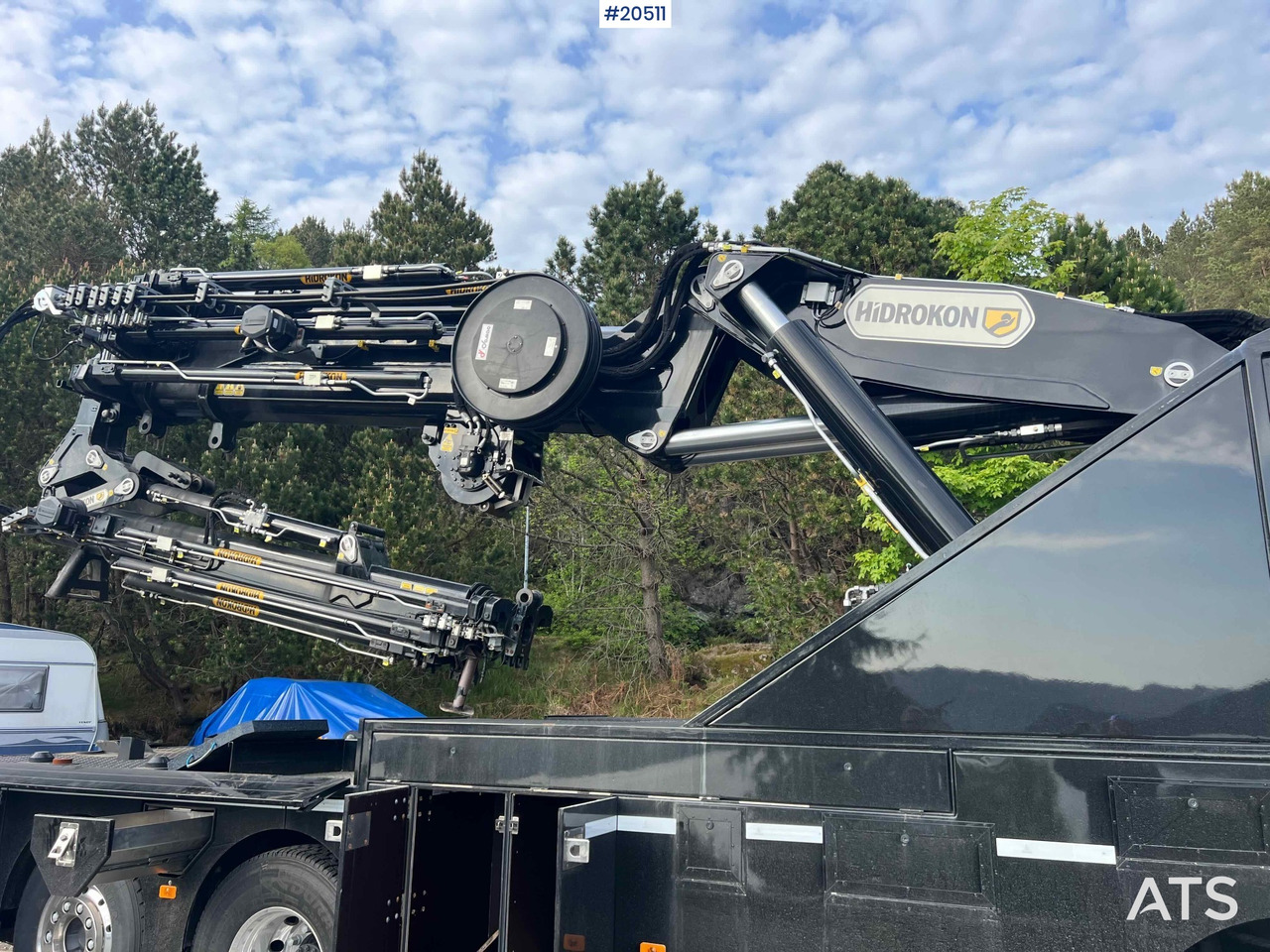

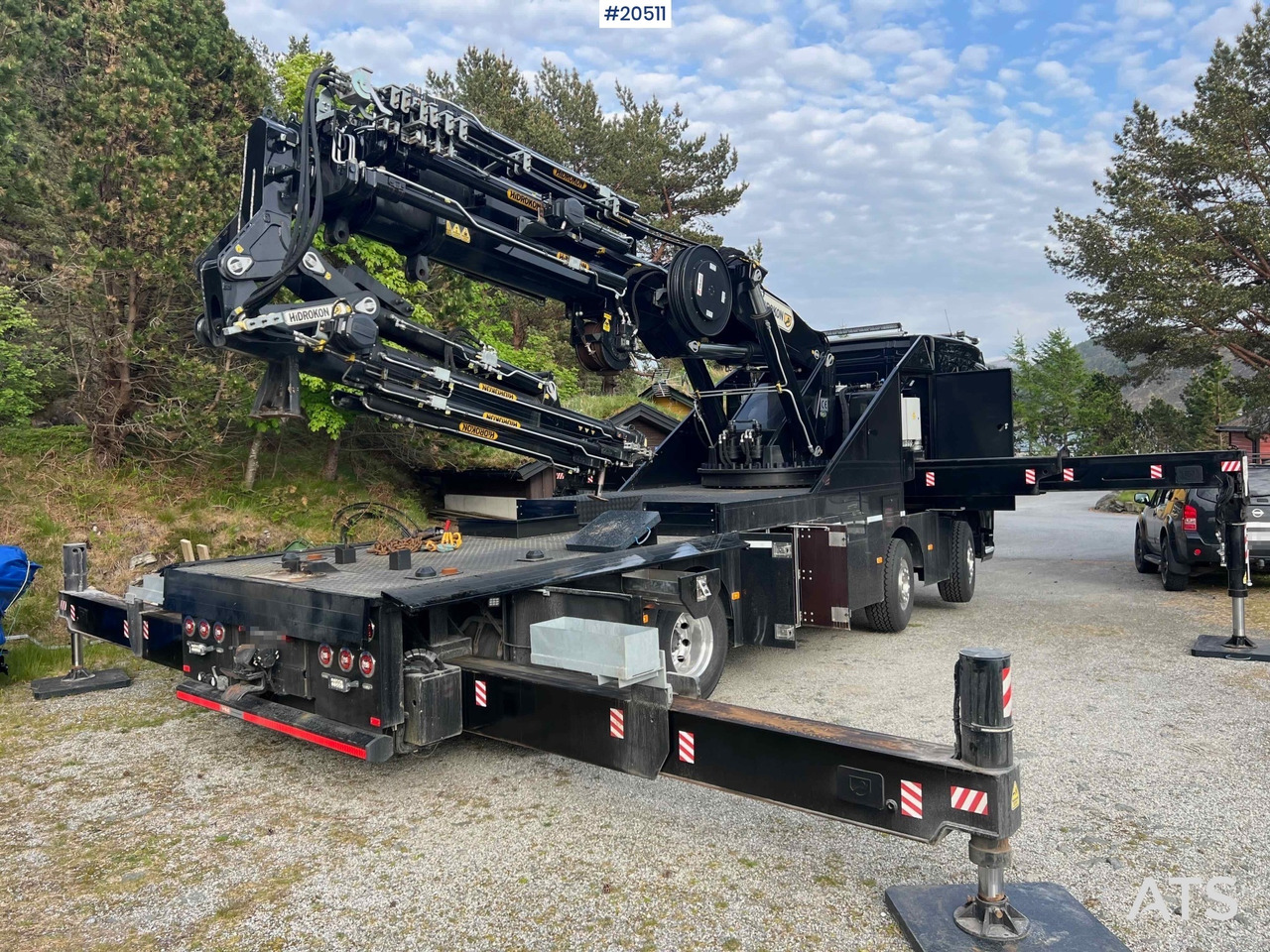

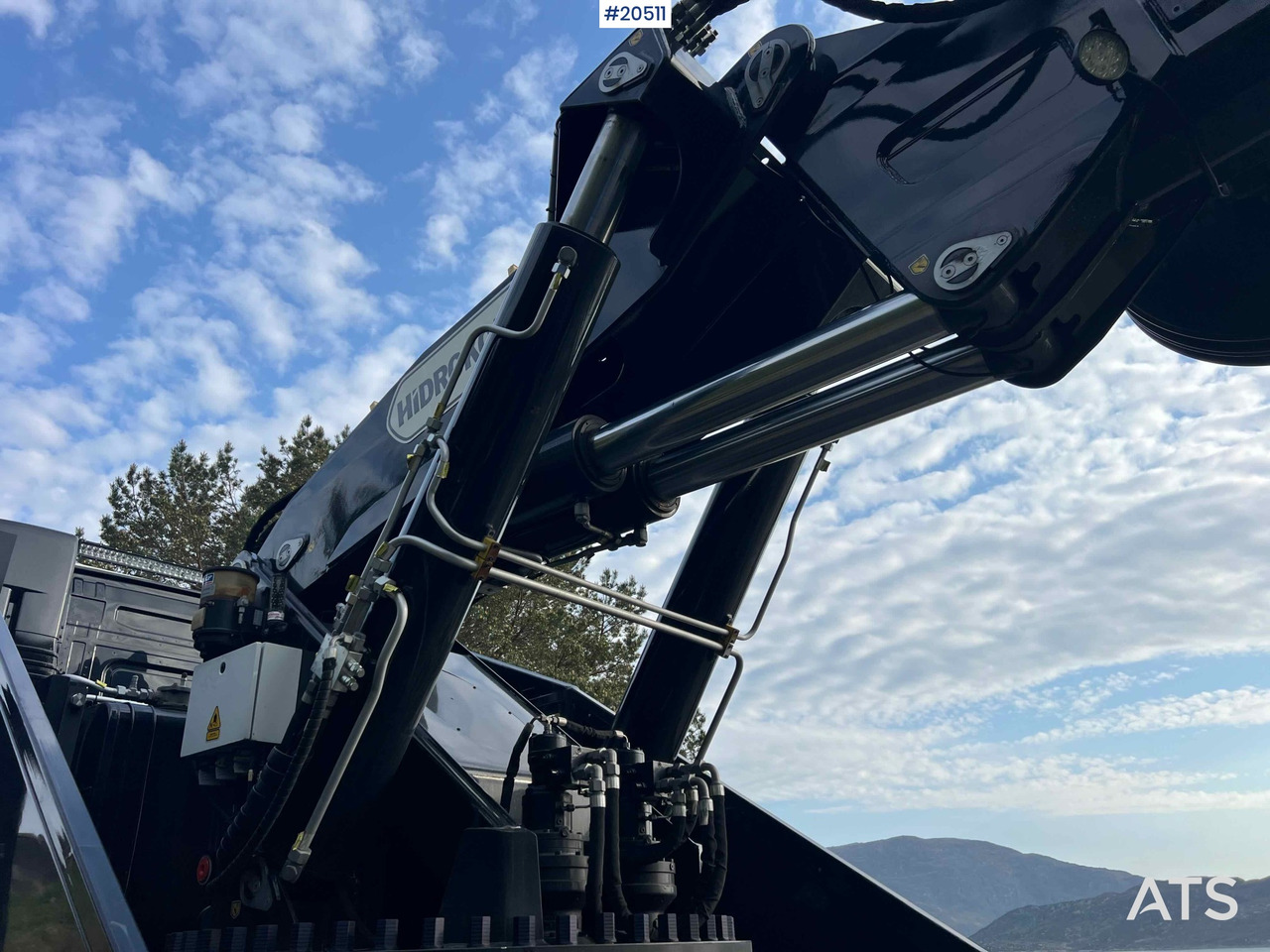

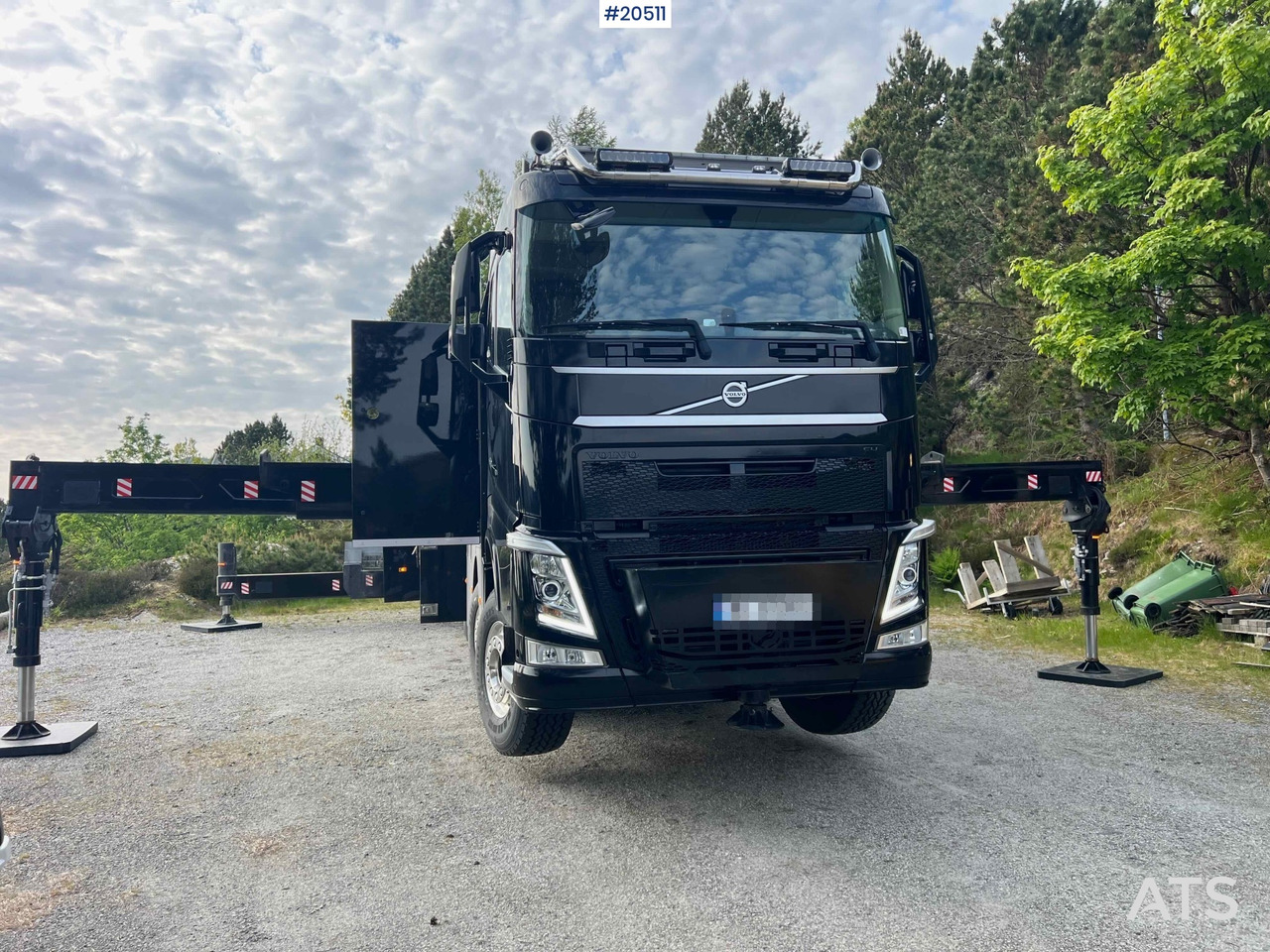

We have a 2021 Volvo FH 540 8x2 Crane truck w/ 2021 165 t/m HIDROKON crane w/jib and winch and lots of equipment for sale.
The car appears new and has hardly been used. All services have been done at a brand workshop.

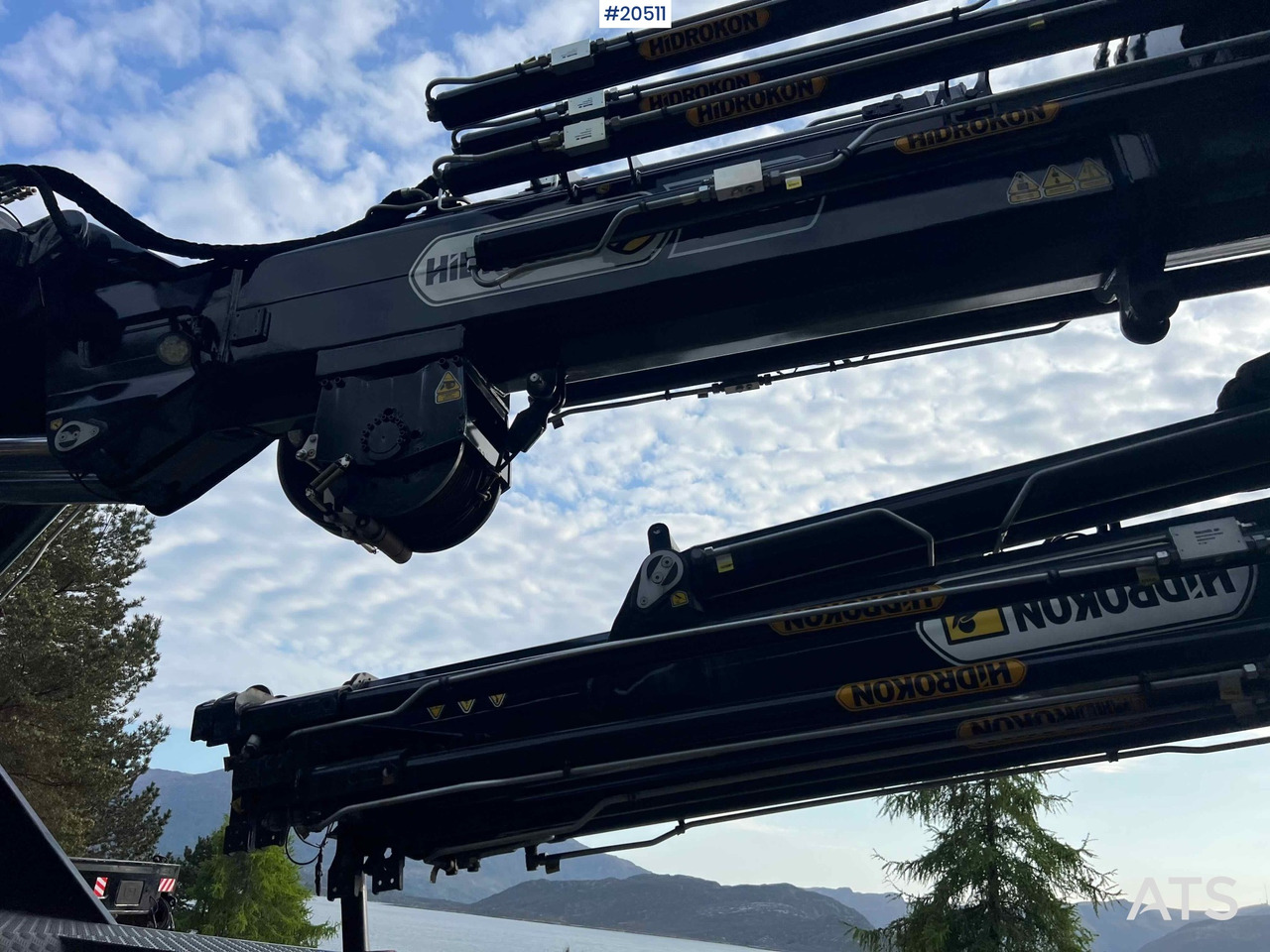

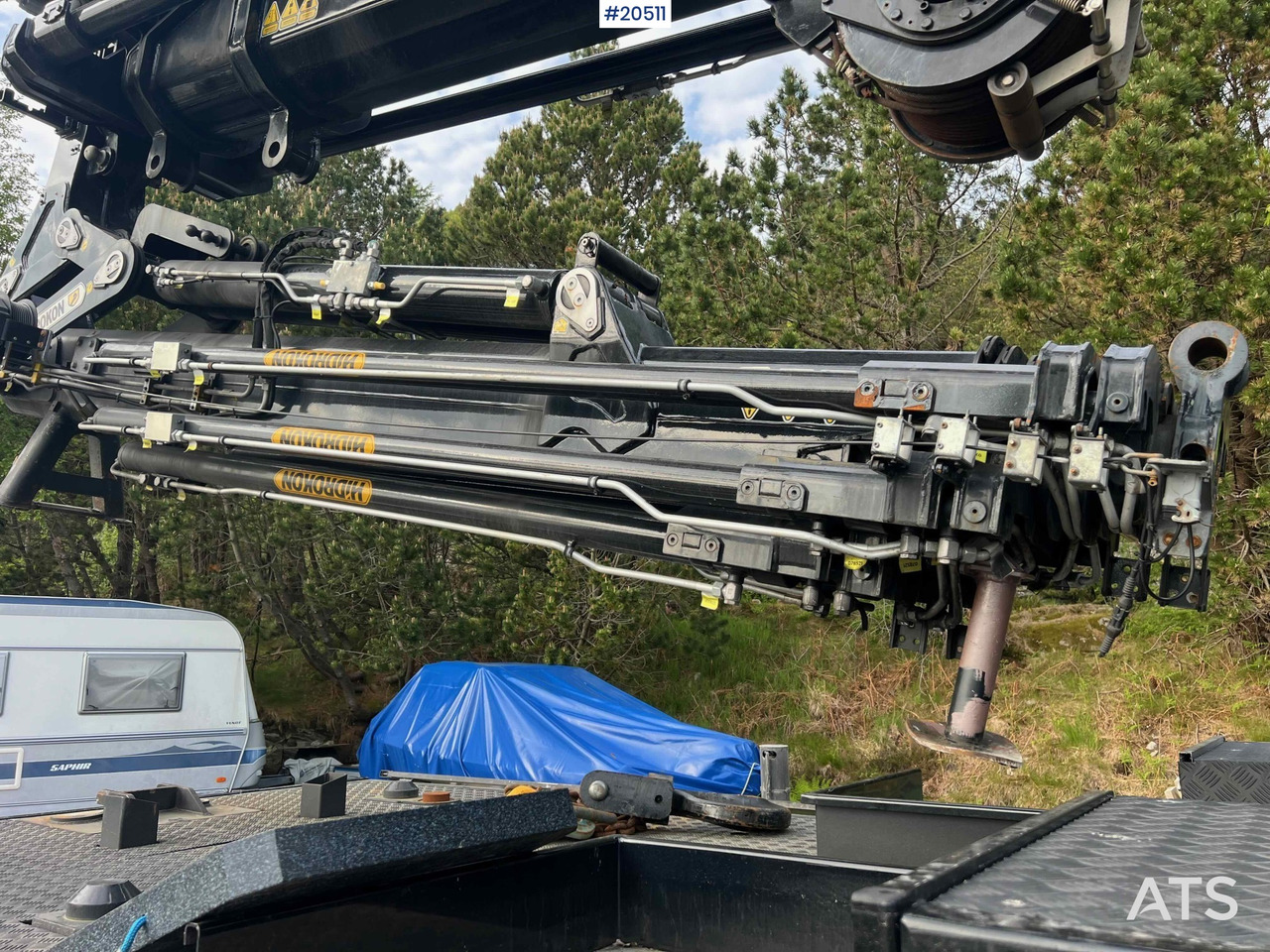

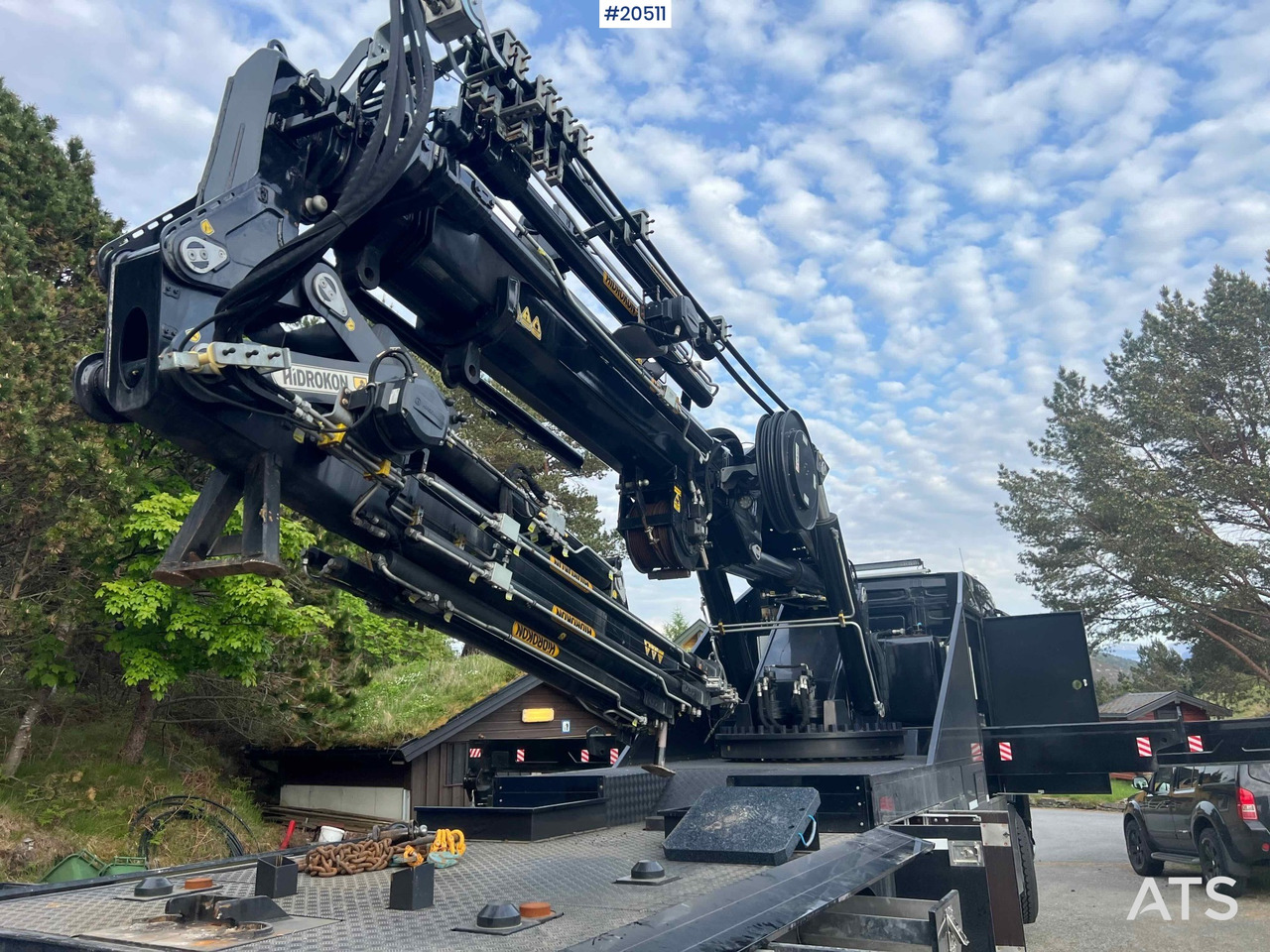

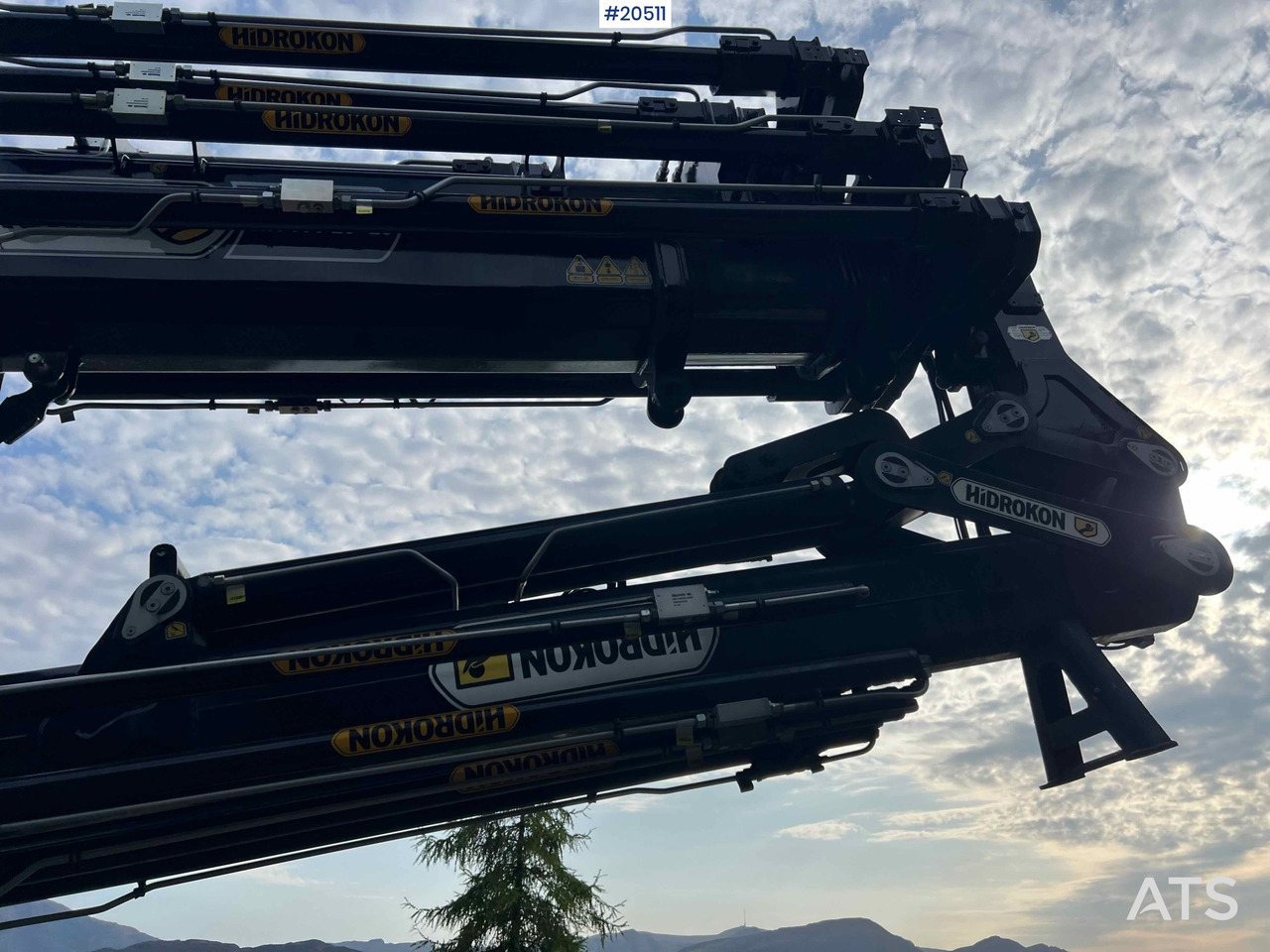

There are 8 hydraulic extensions on the main boom and 6 hydraulic extensions on the jib.
Everything works as it should according to the owner.
MUST SEE!
Ready for delivery
Km: 5874
HK: 550
Technical approved: Yes
EU-approved until: 21.02.2026
Own weight: 30600
Total Weight: 37000
Crane: Year controlled until: 6325
Width: 259
Length: 1103
Euro: 6
Model: FH 540 8x2 Kranbil m/ 2021 165 t/m HIDROKON kran m/ jibb og vinsj og enn masse utstyr! SE VIDEO
