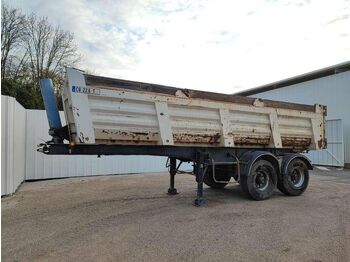

Tippsemi LeciTrailer CO2S

Brand : Lecitrailer

Model : CO2S Link with trailer

Year of manufacture : 2000

VAT : 25

Internal stock no : S6361

Please provide reference number upon request: S6361

2000 LeciTrailer  CO2S Link with trailer

Link:

Manufacturer: LECI TRAILER

Model: CO2S

Year model: 2000

Inspection status: Uninspected

Last approved inspection: 2020-04-30

Dimensions and weights:

Length:  11900mm

Width: 2550mm

Chassis only:

Operating weight:  4400 kgs

Total weight:  30 000 kgs

Max load weight:  25 600 kgs

Permitted load weight: 13 600???kgs

Tax weight: 18 000 kgs

Wheelbase:

1-2:  1360mm

Cabinet:

Height from the top of the cabinet to the plate at the pin approx. 3116mm

Cabinet height on the outside approx. 2900mm

Cabinet height inside approx. 2750mm

Cabinet length inside approx. 7000mm

Flaws:

Drove into a viaduct, frame on top of cabinet damaged

Needs a proper overlook

Rust is present

Gaps and leaks exist

Uncertain function of hydraulics

Other:

Text code

T13K DATE ON WHICH THE VEHICLE HAS BEEN PUT INTO SERVICE IS ESTIMATED

T71AB THE VEHICLE IS MISSING ITS OWN FRONT TRUNK.

THE VEHICLE IS INTENDED EXCLUSIVELY FOR THE TRANSPORTATION OF LOAD CARRIERS.

BODYWORK: REAR TUNING DISC (KOD85) AND BASE FOR

ISO CONTAINER (CODE83)

CHASSIS NUMBER LOCATED ON RIGHT FRAME BEAM IN FRONT OF SUPPORT

COUPLING DISTANCE REFER TO PIN-TURN PLATE

COUPLING DISTANCE STUD-LAST AXLE 8.57 M

N-VALUE FOR TURN DISC -1.24 M

CONTAINER FASTENING 6 PCS

BRAKES ACCORDING TO 98/12/EEC

LIGHTING ACCORDING TO 97/28/EEC

Trailer:

Chassis only:

Manufacturer: RENDERS

Model: RPS 10

Year model: 2005

Inspection status: Uninspected

Last approved inspection: 2020-07-29

Dimensions and weights:

Length:  13300mm

Width: 2450mm

Coupling distance: 9550mm

Curb weight:  5760 kgs

Total weight:  43 000 kgs

Max load weight:  37 240 kgs

Permitted load weight: 18 240 kgs???

Tax weight: 24 000kgs

Wheelbase:

1-2:  1420mm

2-3:  1320mm

Cabinet:

Side tip and Liftable VÄ side

External height: approx. 3200mm

Internal height: approx. 3030mm

External length: approx. 7500mm

Internal length: approx. 7434mm

About 3360mm from the top of the cabinet to the plate at the tap

Burst:

Needs a proper overlook

Rust is present

Gaps and leaks exist

Uncertain function of hydraulics

Other:

CHASSIS NUMBER LOCATED ON RIGHT FRAME BEAM IN FRONT OF SUPPORT

VEHICLE COLLABLE 3.60 M, LENGTH 9.70 M AND COUPLING DISTANCE 5.95 M

TRIPLE AXLE MOVEABLE 1.62 M

1ST AXLE LIFTABLE

8 PCS CONTAINER MOUNTS

THE VEHICLE IS MISSING SIDE PROTECTION

Text code

T71AB THE VEHICLE IS MISSING ITS OWN FRONT TRUNK.

THE VEHICLE IS INTENDED EXCLUSIVELY FOR THE TRANSPORTATION OF LOAD CARRIERS.

NOTE:

Both chassis are basically container chassis, the superstructures have container mounts
