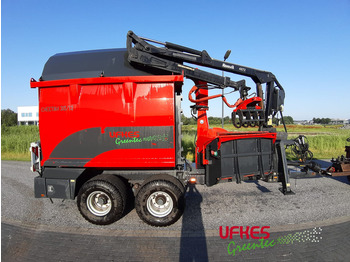

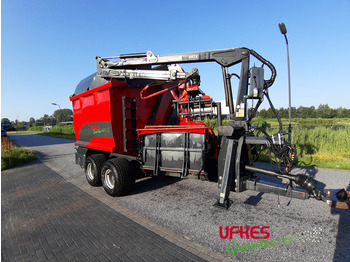

Flismaskin Greentec Cheetah 30/13 combi

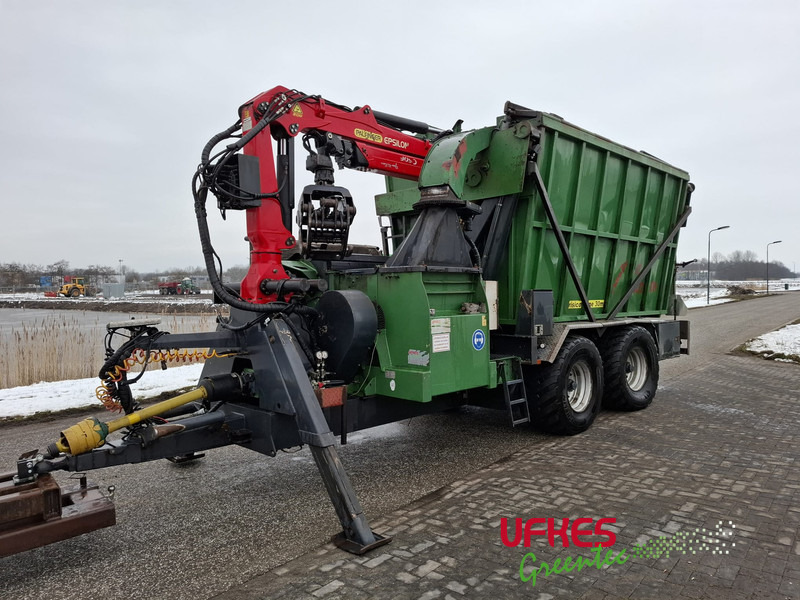

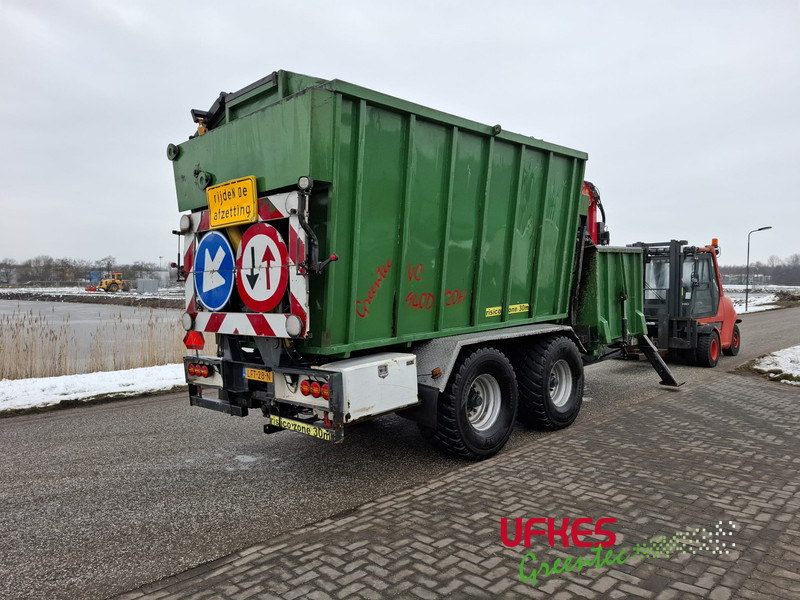

Greentec Cheetah 30/13 wood chipper combination (2018)

Operating hours 1289

Technical Specifications

Infeed opening (mm)300 x 580

Feed opening channel (mm)300 x 320

Combi infeed table for hand infeed and crane feed

Disc (mm) Ø 960 x 58

Anvil knives 3

Max. chip length (mm)22

Drive PTO 540E/1000/1000E

Revolutions disc (rpm)750 /850/1000

Number of knives on disc 2

Infeed speed (m/s)0,6

Capacity up to (m3/hour)40

Gear casing full oilbath bearing

Power requirements (HP)

from 80-140 hp 540eco/1000 rpm pto and 750 rpm disc

from 100-200 hp 1000/1000eco rpm pto and 1000 rpm disc

Container Volume (m3)13

Gross weight max. (tonnes) (k80)20

Loading capacity tandem axle (tonnes)16

Steel toolbox on both sides, with lock and key

Infeedroller hydraulically opened

Cheetah 30-13 chute, hydraulic slewing & manual deflector adjustment

Air brakes, 2 air ducts VC13

Tyres 500/50 17 Flowtation

Nokka HK 4872 Woodcrane

Lifting moment gross 48 kNm

lifting capacity at 4 m 892 kg

Reach: 7,2 m

Rotator NR 5

N16 4- teeth grab opening 1200 mm.

Radiographic remote control

Actionboarding LED lighting.

1,2 mtr. wide 2 mtr. high

More information

Damages: none

Warranty: Geen

Ask for the financial lease options
